1-1986300-1

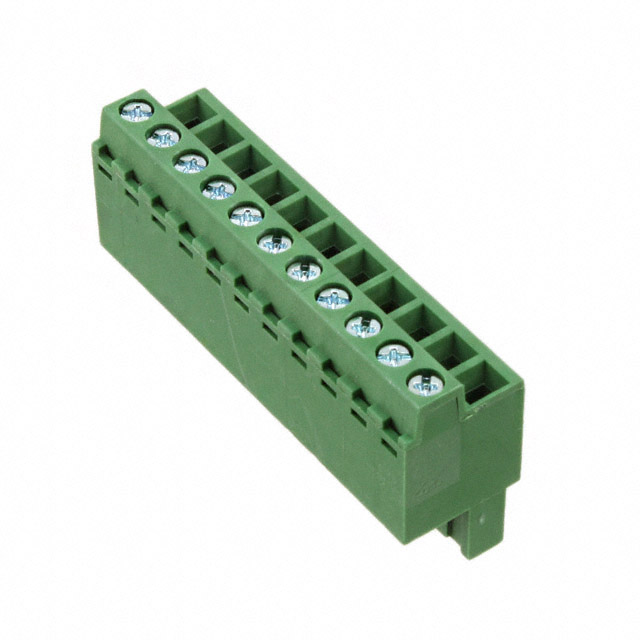

TE CONNECTIVITY 1-1986300-1 Pluggable Terminal Block, 5mm, 11Positions, 24AWG, 14AWG, 2mm², Screw

Plug, 5.0mm, Gn, Sws & WE sme side, 11p

得捷:
TERM BLOCK PLUG 11POS STR 5MM

艾睿:

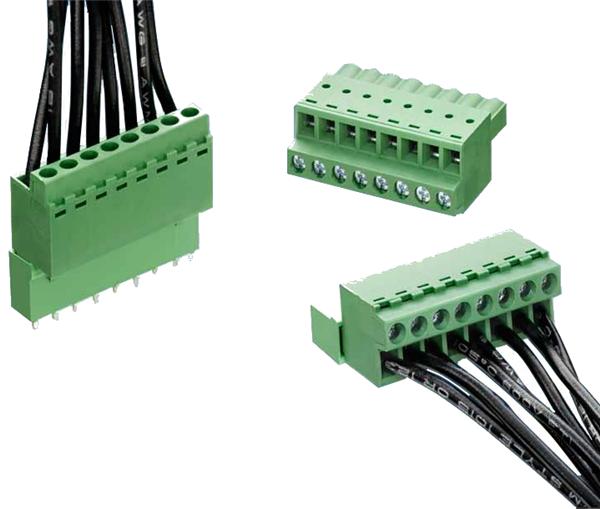

This eurostyle block 1-1986300-1 PCB terminal block from TE Connectivity will join multiple circuits by connecting to the bare wire. This PL connector&s;s 11 contacts that are made out of phosphor bronze/steel and plated with tin/zinc. Its pitch is 5 mm. It has a maximum voltage rating of 300 V. It has a straight body orientation. It has a plug type gender. This is a 1-row connector. This device has a maximum current rating of 16 A/contact. 1-1986300-1 is housed in polyamide 6/6. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 55 mm long, 14.9 mm tall and 27.1 mm deep. It uses the screw termination method. Its wire is 14-24 AWG.

Verical:
Conn Eurostyle Block PL 11 POS 5mm Screw ST Cable Mount 16A/Contact

Newark:
# TE CONNECTIVITY  1-1986300-1  Pluggable Terminal Block, 5 mm, 11 Positions, 24 AWG, 14 AWG, 2 mm², Screw

MASTER:
Plug, 5.0mm, Gn, Sws & WE sme side, 11p

Powell:
Pluggable Terminal Blocks FrtStyle Trm Blk Plg 5mm 11 POS

Online Components:
Plug, 5.0mm, Gn, Sws & WE sme side, 11p

Electro Sonic:
Plug, 5.0mm, Gn, Sws & WE sme side, 11p
