Conn Wire to Board HDR 6POS 5.08mm Solder RA Thru-Hole
6 针位端子块 接头，公引脚，带罩（4 面） 0.200"（5.08mm） 90°，直角 - 通孔
得捷:
TERM BLOCK HDR 6POS 90DEG 5.08MM
艾睿:

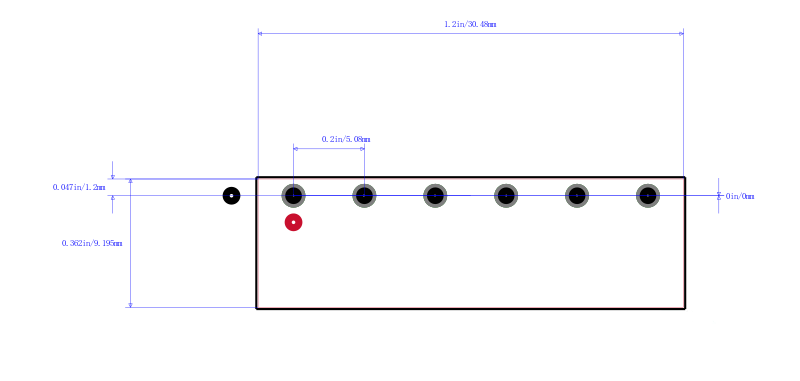

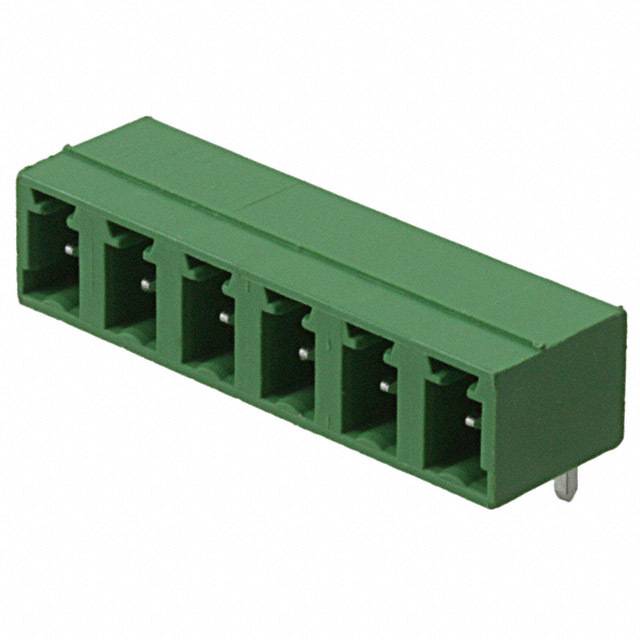

This wire to board 1836228 header connector from Phoenix Contact is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector has 6 contacts that are plated with tin. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 320 V. This is a 1-row connector. Its pitch is 5.08 mm. This device has a maximum current rating of 8 A. This product is 30.48 mm long, 7.25 mm tall and 9.2 mm deep. It uses the solder termination method. 1836228 is housed in green polybutylene terephthalate.
Verical:
Conn Wire to Board HDR 6 POS 5.08mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - number of positions: 6 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Wire to Board HDR 6 POS 5.08mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - ...
