1-1718643-1概述

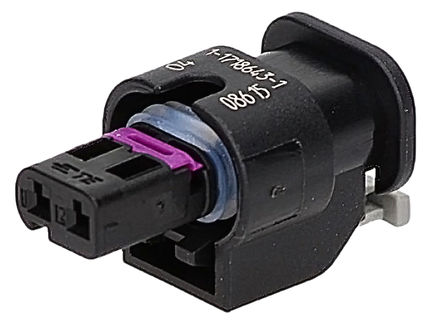

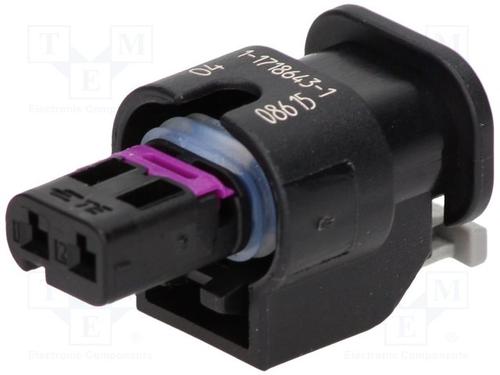

TE CONNECTIVITY  1-1718643-1  连接器外壳, MCON 1.2 Series, 插座, 2 路, 4 mm, AMP MCON 1.2 Series Pin Contacts 新

MCON 1.2mm 插座外壳

MCON 1.2 mm 插座外壳由 PA66-GF35 制成,适用于清洁主体触点(请参见库存号 718-7198)。 这些 MCON 1.2 mm 插座外壳密封,具有标准闩锁且接受 0.5 到 1.5mm2 的电线规格范围。

### TE Connectivity 汽车


得捷:
AMP MCP 1.2 CONN.2POS.,SEALED


欧时:
TE Connectivity MCON 1.2 系列 2路 直插式安装 黑色 母 外壳 1-1718643-1


立创商城:
4mm 1x2P


艾睿:
Use this 1-1718643-1 discrete wire housing from TE Connectivity for a durable connection between discrete wires. This RCP connector has 2 RCP contacts. This is a 1-row connector. It has a straight body orientation. It has a receptacle type gender. Its pitch is 4 mm. This product is 14.9 mm tall. 1-1718643-1 is housed in black polyamide 6/6.


安富利:
Conn Housing RCP 2 POS 4mm Crimp ST Cable Mount Loose Piece


TME:
Connector: automotive; MCON 1.2; plug; female; PIN:2; IP69K; black


Verical:
Conn Housing RCP 2 POS 4mm Crimp ST Cable Mount Black Loose Automotive


Newark:
# TE CONNECTIVITY  1-1718643-1  RECEPTACLE HOUSING, 2POS, NYLON, BLACK


MASTER:
2pos, MCON 1.2 - LL Connector Sealed


Powell:
MCON - Connectors


Online Components:
2POS, MCON 1.2 LL REC SEALED COD A


Electro Sonic:
2POS, MCON 1.2 LL REC SEALED


1-1718643-1中文资料参数规格
技术参数

触点数 2

极性 Female

排数 1

针脚数 2

工作温度Max 130 ℃

工作温度Min -40 ℃

封装参数

引脚数 2

封装 -

外形尺寸

宽度 15 mm

高度 28.5 mm

封装 -

物理参数

外壳颜色 Black

颜色 Black

材质 Polyamide PA

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8538909999

数据手册

在线购买1-1718643-1
型号: 1-1718643-1
描述:TE CONNECTIVITY  1-1718643-1  连接器外壳, MCON 1.2 Series, 插座, 2 路, 4 mm, AMP MCON 1.2 Series Pin Contacts 新
