1-2106489-4

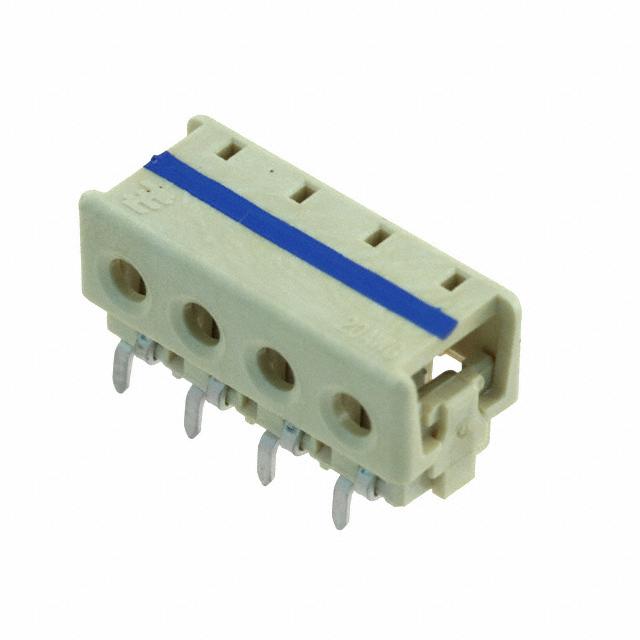

TE CONNECTIVITY 1-2106489-4 Wire-To-Board Connector, 20AWG, 4mm, 4Contacts, Receptacle, Through Hole, 1Rows

4 位置 单条导线 天然 IDC 20AWG 通孔，直角

得捷:
CONN WIRE IDC 4POS 20AWG PCB RA

艾睿:
Thanks to TE Connectivity&s;s idc connector 1-2106489-4 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This is a 1-row connector. Its pitch is 4 mm. It has a right angle body orientation. It has a maximum voltage rating of 250 VDC|250VAC. This device has a maximum current rating of 6 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 17.7 mm long, 5.8 mm tall and 7.75 mm deep. 1-2106489-4 is housed in blue liquid crystal polymer.

安富利:
Conn IDC Connector M 4 POS 4mm IDT RA Cable Mount Tape

Chip1Stop:
Conn IDC Connector 4 POS 4mm Solder RA Thru-Hole Tape

Verical:
Conn IDC Connector 4 POS 4mm Solder RA Thru-Hole T/R

Newark:
# TE CONNECTIVITY  1-2106489-4  Wire-To-Board Connector, 4 mm, 4 Contacts, Receptacle, SSL Series, Through Hole, 1 Rows

MASTER:
ASSEMBLY, IDC SSL CONNECTOR, THROUGH HOLE, CLOSED END

Powell:
Lighting Connectors 4 Position 20 AWG Thru Hole Closed End

Online Components:
Connector, Thru Hole-IDC, 4 pos, 20AWG

Electro Sonic:
Connector, Thru Hole-IDC, 4 pos, 20AWG
