14310617102000

14310617102000图片1
14310617102000图片2
14310617102000图片3
14310617102000图片4
14310617102000概述

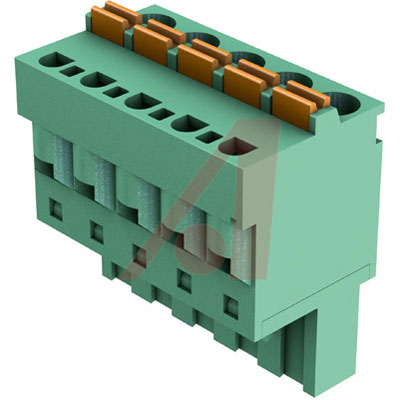

6 位置 单排 12-30 AWG Har-Flexicon 5.08 FPH-6 B100 GN 连接器

har-flexicon® - The connection of PCBs shows a clear trend towards the miniaturization and reflow-soldering connection technology. This requires innovative answers regarding size, utilization, flexibility, and handling of the components.

The har-flexicon® product family has been designed for the toolless connection of single wires and the SMT/SMC-reflow-soldering process. har-flexicon® ensures an efficient processing for both the device production and the device installation.


得捷:
TERM BLOCK PLUG 6POS STR 5.08MM


贸泽:
Pluggable Terminal Blocks 6P 300V 12A 5.08 mm pitch spring, plug


艾睿:
Ideal for testing purposes this spring cage terminal block 14310617102000 PCB terminal block manufactured from Harting will exceed your needs. This F connector has 6 F contacts. This is a 1-row connector. It has a maximum voltage rating of 300 V. Its pitch is 5.08 mm. It has a female type gender. It has a right angle body orientation. 14310617102000 is housed in polyamide/polyphthalamide. This device has a maximum current rating of 12 A. Its wire is 12-30 AWG. This quick disconnect terminal has an operating temperature of -40 to 110 °C. This product is 14.9 mm tall.


Allied Electronics:
Conn; Terminal Block; 5.08mm Pitch; FemaleCon; Horizl; 6 Pin; B100; Green; har-flexicon


Verical:
Conn Spring Cage Terminal Block F 6 POS 5.08mm RA Cable Mount 12A har-flexicon® Bulk


Newark:
# HARTING  14310617102000  Pluggable Terminal Block, 5.08 mm, 6 Positions, 30 AWG, 12 AWG, 2.5 mm², Push In


14310617102000中文资料参数规格
技术参数

触点数 6

线规 12AWG ~ 30AWG

额定电流 12 A

绝缘电阻 10 GΩ

排数 1

电路数 6

针脚数 6

接触电阻 15 mΩ

额定电流Max 12 A

工作温度Max 110 ℃

工作温度Min -40 ℃

额定电压Max 300 V

额定电压 600 V

工作电压Max 300 V

外形尺寸

长度 30.48 mm

高度 14.9 mm

物理参数

外壳颜色 Green

颜色 Green

触点材质 Copper Alloy

工作温度 -40℃ ~ 110℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买14310617102000
型号: 14310617102000
制造商: Harting Technology Group 哈丁电子
描述:6 位置 单排 12-30 AWG Har-Flexicon 5.08 FPH-6 B100 GN 连接器
