199X-14概述

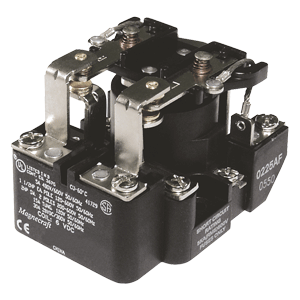

通用继电器 Open Style Power Rly DPDT, 40 A

The Magnecraft 199 relay is the powerhouse open relay. Standard parts can handle up to 40 A and there are options to handle up to 50A. The device is available in a variety of configurations and coil voltages. Available with up to two poles, double and single throws, insulated and noninsulated double make and/or break, and several switching forms. Options include auxiliary 10 A switches with quick connects or screw terminals, quick connects on the coils and/or contacts, tungsten stationary contacts, fine silver contacts, pressure wire connectors on the output terminals and blowout magnets near the contacts for high voltage DC switching.

5⁄16" diameter silver alloy, gold flashed contacts rated up to 40 amps at 277 VAC, 50/60 Hz. Class B insulation system.
.
*Dielectric Withstanding Voltage:** Between open contacts — 1500 V, between mutually insulated conductive elements — 2200 V. **Screw Terminals: **Molded phenolic base.
199X-14中文资料参数规格
技术参数

额定电流 40 A

触点类型 DPDT

线圈电压 110 VDC

线圈电流 18.3 mA

线圈电阻 6 kΩ

额定电流Max 40 A

线圈电压DC 110 V

工作温度Max 60 ℃

工作温度Min -40 ℃

额定电压 277 VAC

额定电压DC Max 28 V

额定电压AC Max 277 V

封装参数

引脚数 8

外形尺寸

长度 58.8 mm

宽度 63.5 mm

高度 58.67 mm

物理参数

触点材质 Silver

工作温度 -40℃ ~ 55℃

符合标准

RoHS标准 RoHS Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536410050

数据手册

在线购买199X-14
型号: 199X-14
描述:通用继电器 Open Style Power Rly DPDT, 40 A
替代型号199X-14
型号/品牌 代替类型 替代型号对比

199X-14

Schneider Electric 施耐德

当前型号

当前型号

199BX-14

施耐德

完全替代

199X-14和199BX-14的区别

PRD-11DY0-110

Brumfield

功能相似

199X-14和PRD-11DY0-110的区别
