1408150-1

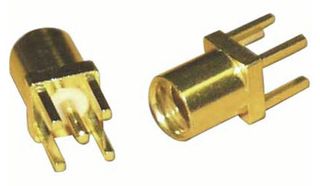

TE CONNECTIVITY  1408150-1  射频/同轴连接器, MMCX同轴, 直型插座, 通孔安装 垂直, 50 ohm, 黄铜

50Ω MMCX - 印刷电路板插孔插座

50Ω MMCX 印刷电路板安装插孔插座，具有 PTFE 电介质、焊接尾线、镀金黄铜主体和 4.5mm 高印刷电路板

库存号 446-6454 和 713-0978 具有直向主体和 4.5mm 高印刷电路板

库存号 713-0978 具有直角/弯头主体和 3.80mm 高印刷电路板

### TE Connectivity MMCX

提供电缆、面板和印刷电路板安装型号

得捷:
CONN MMCX JACK STR 50 OHM PCB

欧时:
### TE Connectivity 50Ω MMCX 连接器 - 印刷电路板插孔插座50Ω MMCX 印刷电路板安装插孔插座，具有 PTFE 电介质、焊接尾线、镀金黄铜主体和 4.5mm 高印刷电路板 库存号 446-6454 和 713-0978 具有直向主体和 4.5mm 高印刷电路板 库存号 713-0978 具有直角/弯头主体和 3.80mm 高印刷电路板### TE Connectivity MMCX提供电缆、面板和印刷电路板安装型号 技术参数 --- 阻抗 Ω | 50Ω | VSWR |   频率范围 | 0-6 GHz | 直向 | 1.10:1 绝缘电阻 | 最低 1000 MΩ | 90° | 1.15:1 触点电阻： |   | 主体材料 | 镀金 内部 | 最高 15mΩ | 插塞接点 | 镀金 外部 | 最高 7.5mΩ | 塞孔接点 | 氧化铍铜   |   | 绝缘体 | PTFE 性能参数是典型值，但不适用于所有连接器类型。

e络盟:
射频/同轴连接器, MMCX同轴, 直型插座, 通孔安装 垂直, 50 ohm, 黄铜

艾睿:
A low impedance means lower resistance levels for easier data transfer, this mmcx 1408150-1 RF connector from TE Connectivity will do just that while giving you protection. This connector&s;s body is plated in gold. It has a receptacle type gender. It has a straight body orientation. It has an operating frequency of 0 to 6G Hz. This product is 3.5 mm long, 4.5 mm tall and 3.5 mm deep. This rf connector has an operating temperature of -55 to 155 °C. It uses the solder termination method.

Allied Electronics:
MMCX Series RF Connector; Straight JackPCB Receptacle

安富利:
Conn MMCX RCP 0Hz to 6GHz 50Ohm Solder ST Thru-Hole Gold

Chip1Stop:
Conn MMCX RCP 0Hz to 6GHz 50Ohm Solder ST Thru-Hole Gold Automotive Package

Verical:
Conn MMCX 0Hz to 6GHz 50Ohm Solder ST Thru-Hole RCP Gold Package Automotive

Newark:
# AMP - TE CONNECTIVITY  1408150-1  RF / Coaxial Connector, MMCX Coaxial, Straight Jack, Solder, 50 ohm, Brass

MASTER:
MMCX STRAIGHT PCB JACK

Powell:
MMCX RF Connectors

Online Components:
MMCX PCB STRAIGHT JACK THRU HO

ICbanQ:
RF Connectors PCB VERT JACK

Electro Sonic:
MMCX PCB STRAIGHT JACK THRU HO

Win Source:
CONN MMCX JACK STR 50 OHM PCB / MMCX Connector Jack, Female Socket 50Ohm Through Hole Solder
