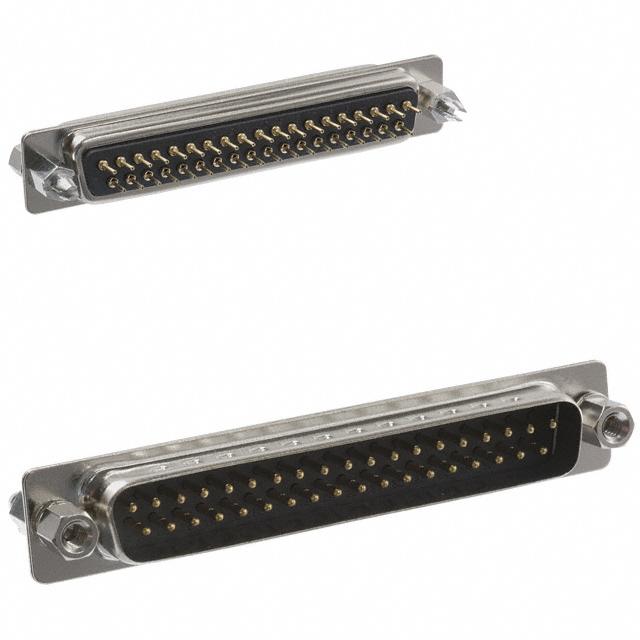

37 位置 2 排 标准 空中对接式 插头 公头 D-Sub
The 171 series high performance Dip Solder D-sub Connectors with stamped contacts. It has brass male pins contact, phosphor bronze female pins contact with gold flash on entire contact-plating, glass-filled thermoplastic insulator and steel, nickel plated shell.
- .
- Available in 9, 15, 25, 37 and 50 industry sizes/positions
- .
- Non-removable contacts
- .
- Nickel shells have indents to provide grounding and additional retention
- .
- Optional mounting hardware available
- .
- UL94V-0 Flammability
触点数 37
极性 Male
触点电镀 Gold
额定电流 5 A
绝缘电阻 1000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 37
工作电压Max 500 VAC
安装方式 Through Hole
引脚间距 2.77 mm
长度 69.4 mm
宽度 12.6 mm
高度 12.5 mm
引脚间距 2.77 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -50℃ ~ 100℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
制造应用 Industrial, Computers & Computer Peripherals, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
171-037-113R911 NorComp | 当前型号 | 当前型号 |
171-037-112-911 NorComp | 完全替代 | 171-037-113R911和171-037-112-911的区别 |
