14120516001000

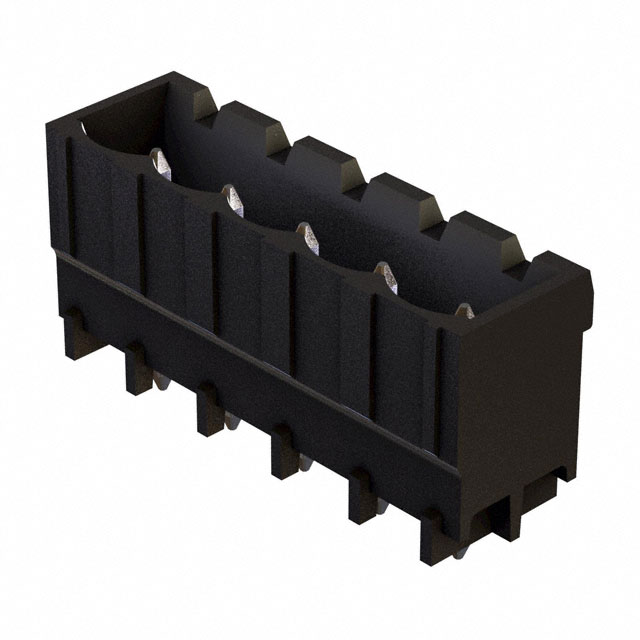

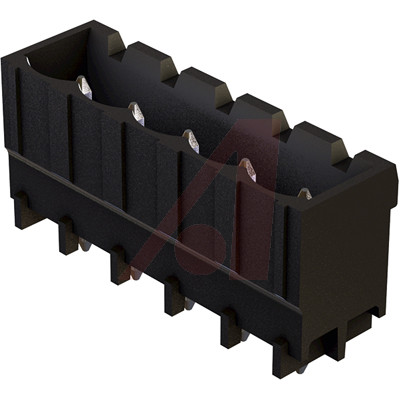

5 位置 单排 Har-Flexicon 5.00 MTV-5 TB75 BK 连接器

har-flexicon® - The connection of PCBs shows a clear trend towards the miniaturization and reflow-soldering connection technology. This requires innovative answers regarding size, utilization, flexibility, and handling of the components.

The har-flexicon® product family has been designed for the toolless connection of single wires and the SMT/SMC-reflow-soldering process. har-flexicon® ensures an efficient processing for both the device production and the device installation.

得捷:
TERM BLOCK HDR 5POS VERT 5MM

艾睿:
As an added safety precaution, the shrouded 14120516001000 header connector from Harting will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 5 contacts that are made out of copper alloy and plated with tin. It has a straight body orientation. This is a 1-row connector. Its pitch is 5 mm. It has a maximum voltage rating of 300 V. It has a header type gender. This device has a maximum current rating of 15 A. It uses the solder termination method. This connector has an operating temperature of -40 to 110 °C. 14120516001000 is housed in black polyamide/polyphthalamide. This product is 26.8 mm long, 12 mm tall and 8.65 mm deep.

Allied Electronics:
Conn; Terminal Block; Receptacle; Vertical; SMT; 6; 2.54mm; 6A; 160V

Verical:
Conn Shrouded Header 4 Sides HDR 5 POS 5mm Solder ST Thru-Hole har-flexicon® Bulk

Newark:
# HARTING  14120516001000  Board-To-Board Connector, 5 mm, 5 Contacts, Header, har-Flexicon Series, Through Hole, 1 Rows
