1986714-3

固定接线端子 15MM PWR TERM BLK 3P W/ POLARIZATION PIN

PWR TB 2PIN 3P,15.00 PCB W/PEG

得捷:
TERM BLK 3P SIDE ENTRY 15MM PCB

贸泽:
固定接线端子 15MM PWR TERM BLK 3P W/ POLARIZATION PIN

艾睿:

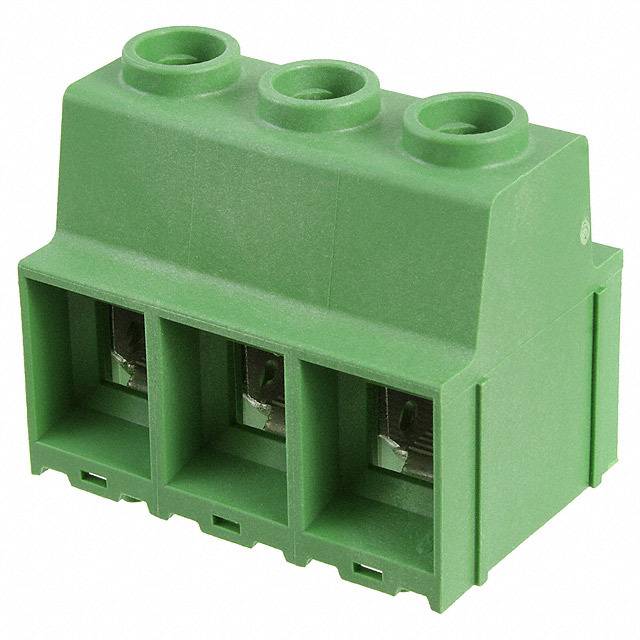

Connecting one or more circuits together, this 1986714-3 PCB terminal block from TE Connectivity is a must-have! It has a straight body orientation. It has a maximum voltage rating of 600 VAC. Its pitch is 15 mm. This is a 1-row connector. This device has a maximum current rating of 130 A/contact. 1986714-3 is housed in polyamide. Its wire is 1-20 AWG. This quick disconnect terminal has an operating temperature of -40 to 110 °C. It uses the solder termination method. This product is 45 mm long, 39 mm tall and 31 mm deep.

安富利:
Conn Terminal Block 3 15mm ST 130/ContactA

Verical:
Conn Terminal Block HDR 3 POS 15mm Solder ST Thru-Hole 130A/Contact

Newark:
# AMP - TE CONNECTIVITY  1986714-3  PWR TB 2PIN 3P,15.00 PCB W/PEG New

MASTER:
POWER TERMINAL BLOCK, SOLDERABLE UP TO 275DEG C DOUBLE PIN MODULAR 02 - 12 POLES

Online Components:
PWR TB 2PIN 3P,15.00 PCB W/PEG

Electro Sonic:
PWR TB 2PIN 3P,15.00 PCB W/PEG
