Device Programmer; Programmer Type: Hardware - Universal; Supported Devices: EPROM, EEPROM, Flash EPROM and more; Dev...

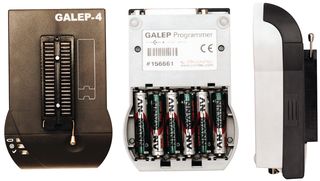

The GALEP-4 is a universal device programmer of pocket sized dimension. The programmer supports EPROMs, EEPROMs, FLASH EPROMs, serial EEPROMs, microcontrollers, GALs and PALCEs, handling up to DIP40 devices without requiring any additional adapters or circuitry. Its connected to the PC through the parallel printer port. For even more performance a version with 48pin drivers. By using a highly integrated FPGA, GALEP"s internal logic is freely programmable and automatically optimized for the selected component. This way all components can be both written and read at optimal speed.

.

Pocket sized, ultra portable format only ca. 80mm x 115mm x 33mm

.

Programs 8bit and 16bit EEPROM"s up to 8MBit, normal and serial EEPROM"s, flash EPROM"s

.

Programs GALs / PALCEs

.

Programs all common microcontrollers

.

Easy PC printer port connection

.

Automatic split/shuffle function for 8bit, 16bit and 32bit target systems

.

Supports hex, jedec and binary file formats

.

Integrated hex and fusemap editor

.

Flexible pin driver technology
