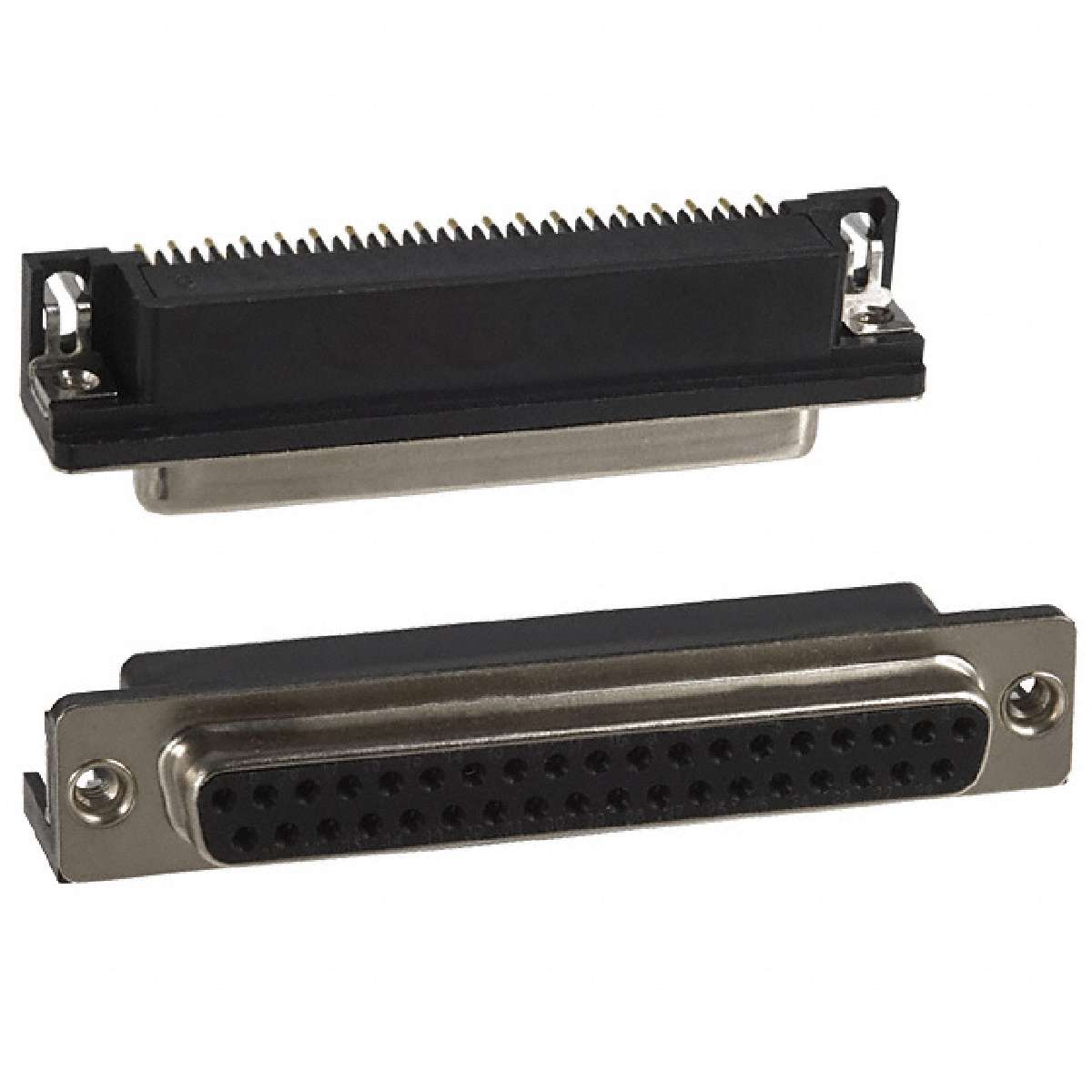

NORCOMP 182-037-213R531 连接器, D sub, 堆叠式, 直角, 182系列, DC, 插座, 37 触点, 钢主体, 通孔安装
The 182 series 0.318-inch footprint economy version right angle D-sub Connectors. It has gold flash-plated brass contact with PA9T insulator and nickel plated, steel shell. It also has copper alloy nickel-plated rivet, SPCC tin-plated board lock and zinc alloy nickel-plated screw lock.
- .
- Available in 9, 15, 25 and 37 industry sizes/positions
- .
- Plug shell has indents to provide grounding and additional retention
- .
- Available in many mounting and grounding to PCB options
- .
- Non-removable contacts
- .
- UL94V-0 Flammability
触点数 37
极性 Female
触点电镀 Gold
额定电流 5 A
绝缘电阻 1000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 37
安装方式 Through Hole
引脚间距 2.77 mm
长度 69.3 mm
宽度 24.9 mm
高度 12.5 mm
引脚间距 2.77 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
制造应用 Computers & Computer Peripherals, Communications & Networking, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
182-037-213R531 NorComp | 当前型号 | 当前型号 |
182-037-212-531 NorComp | 完全替代 | 182-037-213R531和182-037-212-531的区别 |
10090099-S374XLF 法马通 | 类似代替 | 182-037-213R531和10090099-S374XLF的区别 |
