1986715-2

Conn Terminal Block 2POS 15mm Solder ST Thru-Hole 130A/Contact

PWR TB 2PIN 2P,15.00 PCB-FLANGE

得捷:
TERM BLK 2P SIDE ENTRY 15MM PCB

e络盟:
TE CONNECTIVITY  1986715-2  POWER TERMINAL BLOCK, PCB, 2 POSITION, 20-1AWG

艾睿:

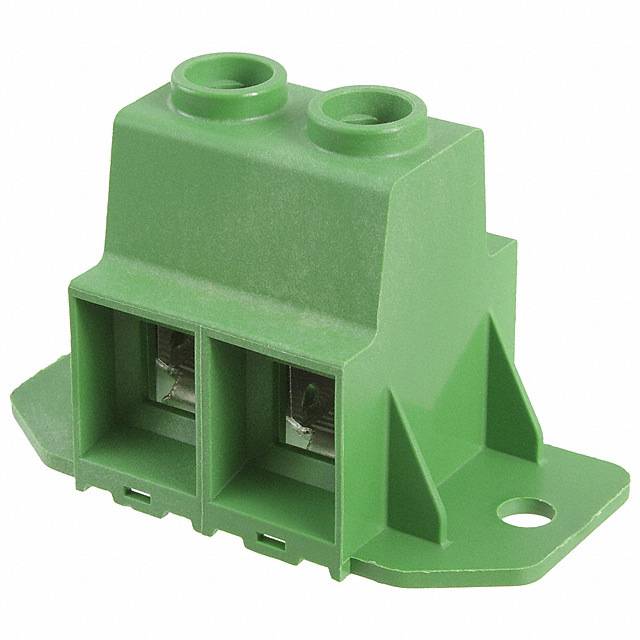

Joining multiple circuits is easy with this 1986715-2 PCB terminal block from TE Connectivity. It has a maximum voltage rating of 600 VAC. Its pitch is 15 mm. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 130 A/contact. 1986715-2 is housed in polyamide. This product is 33 mm long, 39 mm tall and 31 mm deep. This quick disconnect terminal has an operating temperature of -40 to 110 °C. It uses the solder termination method. Its wire is 1-20 AWG.

安富利:
Conn Terminal Block 2 15mm ST 130/ContactA

Verical:
Conn Terminal Block HDR 2 POS 15mm Solder ST Thru-Hole 130A/Contact

Newark:
# TE CONNECTIVITY  1986715-2  Wire-To-Board Terminal Block, Power, 2 Positions, 30 AWG, 12 AWG, 3 mm², Screw

MASTER:
POWER TERMINAL BLOCK, DOUBLE PIN MOUNTING FLANGES; PITCH 15.00 mm

Online Components:
PWR TB 2PIN 2P,15.00 PCB-FLANGE

Electro Sonic:
PWR TB 2PIN 2P,15.00 PCB-FLANGE
