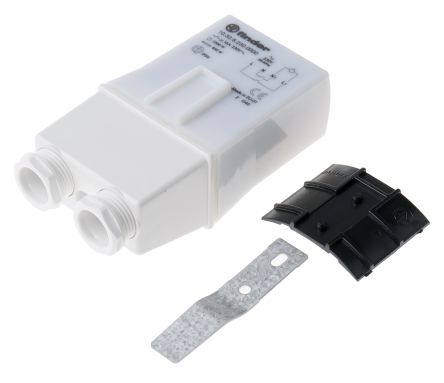

Monobloc Light Dependent RelayMonobloc switch for assembly on exterior wall or pole Cell incorporated inside the device Double load break phase and neutral Supplied with assembly accessories Operating voltage: | 230Vac ---|--- Output: | 2 N/O contacts 16A 250Vac Max. load at 230Vac: | \- incandescent: | 2000W \- compensated fluorescent: | 750W \- halogen: | 2000W Trigger threshold: | \- lighting 1 to 80 lux | \- extinction 2 to 150 lux | Protection index: | IP 54 Operating temperature: | -30°C to +70°C ### 认可EC### 标准IMQ, GOST### 光电
光学传感器 DPST-NO
得捷:
RLY LT DEPEND DPST-NO 16A 230VAC
欧时:
Monobloc Light Dependent RelayMonobloc switch for assembly on exterior wall or pole Cell incorporated inside the device Double load break phase and neutral Supplied with assembly accessories Operating voltage: | 230Vac ---|--- Output: | 2 N/O contacts 16A 250Vac Max. load at 230Vac: | \- incandescent: | 2000W \- compensated fluorescent: | 750W \- halogen: | 2000W Trigger threshold: | \- lighting 1 to 80 lux | \- extinction 2 to 150 lux | Protection index: | IP 54 Operating temperature: | -30°C to +70°C ### 认可EC### 标准IMQ, GOST### 光电
TME:
Twilight switch; IP54; 230VAC; DPST-NO; 110.6x58.6x40mm; -30÷70°C
