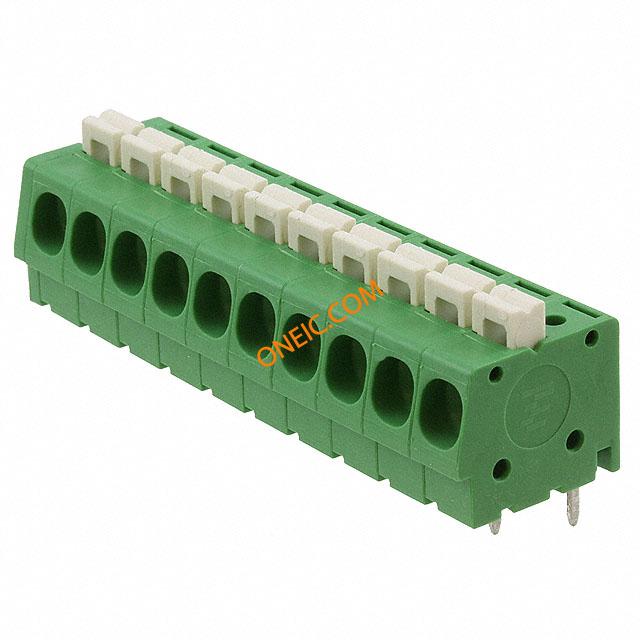

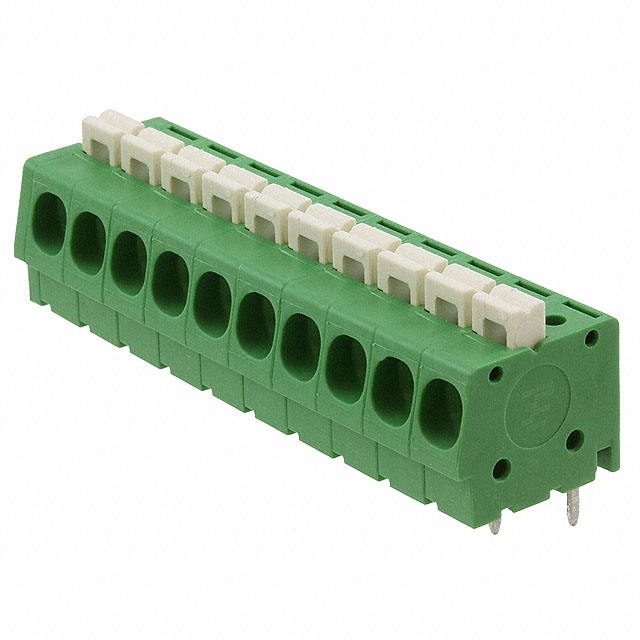

1-1986711-0

プラグ着脱可能ターミナルブロック 5.0MM S/E SPRING 10P SCREWLESS TERM BLOCK

SCREWLESS, SW,10P,5.0 PCB

得捷:
TERM BLK 10P SIDE ENTRY 5MM PCB

艾睿:
This 1-1986711-0 PCB terminal block manufactured from TE Connectivity will bridge different sections of wires together. Its pitch is 5 mm. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. It has a straight body orientation. 1-1986711-0 is housed in polyamide. This device has a maximum current rating of 16 A/contact. Its wire is 12-30 AWG. It uses the solder termination method. This quick disconnect terminal has an operating temperature of -40 to 110 °C. This product is 51.5 mm long, 14.45 mm tall and 14.8 mm deep.

安富利:
Conn Terminal Block 10 5mm ST 16/ContactA

Verical:
Conn Terminal Block 10 POS 5mm Solder ST Thru-Hole 16A/Contact

Newark:
Wire-To-Board Terminal Block, Spring, 5 mm, 10 Positions, 30 AWG, 12 AWG, 3 mm², Push In

MASTER:
SPRING TYPE. SIDE WIRE ENTRY TERMINAL BLOCK SIDE STACKABLE

Online Components:
SCREWLESS, SW,10P,5.0 PCB

Electro Sonic:
SCREWLESS, SW,10P,5.0 PCB
