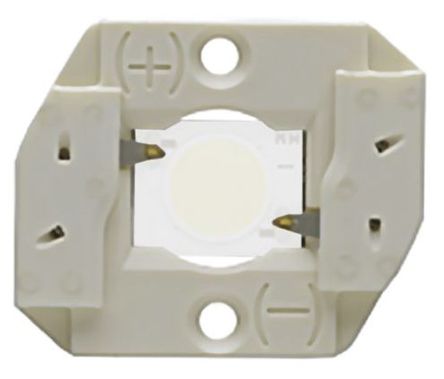

Molex Sharp Zenigata LED Array HoldersThe Molex LED Array Holders for Sharp Zenigata CoB"s are ideal for OEM light-fixture manufacturers by simplifying the LED installation process and reduce installation time through the use of solderless compression contacts that eliminate the need for hand or SMT soldering and expensive SMT equipment. These LED Array Holders allow: CoB LED arrays to be quickly installed into fixtures, enable field replacements by use of releasable wire-traps and facilitate upgrades to current applications. Molex Sharp Zenigata CoB LED Array Holders are ideal for applications including: Architectural lighting, Area lighting and Down lighting.Compression contacts to power array Gold plated Double-ended wire-trap terminal to attach power source, suitable for wire size 18AWG or 20AWG Releasable wire trap for rework or replacement for field serviceability Screw-mount attachment of LED array and holder to heat sink using M3 or 4-40 screws Provides voltage isolation between LED and heat sink Stable connection in high-ambient temperature Ideal for lamp and small-fixture applications, including MR16 or track lighting ### 注Stock number 771-9451 is supplied with a Cover which has Zhaga compliant optical interface.### Molex 阵列座，用于 LED 模块
Sharp Zenigata 阵列支座
用于 Sharp Zenigata CoB 的 Molex LED 阵列支座特别适用于 OEM 灯饰制造商，可简化 LED 安装过程和减少安装时间，通过使用无焊接压缩触点，无需手动或表面安装焊接和昂贵的表面安装设备。这些 LED 阵列支座允许：CoB LED 阵列快速安装到夹具中，可通过使用易松脱电线夹进行现场替换，方便对现有应用进行升级。Molex Sharp Zenigata CoB LED 阵列支座特别适合以下应用，包括：建筑照明、区域照明和筒灯照明。
到电源阵列的压缩触点镀金
双端线夹接线端子，用于连接电源，适用于电线规格 18AWG 或 20AWG
可松脱电线夹，用于返工或替换，可现场维修
可将 LED 阵列和支座用螺钉安装连接至散热片，使用 M3 或 4-40 螺钉
在 LED 与散热片之间提供电压隔离
在高环境温度中稳定连接
特别适用于灯和小夹具应用，包括 MR16 或步道照明
### 注
库存号 771-9451 随附具有 Zhaga 标准光学接口的盖子。
