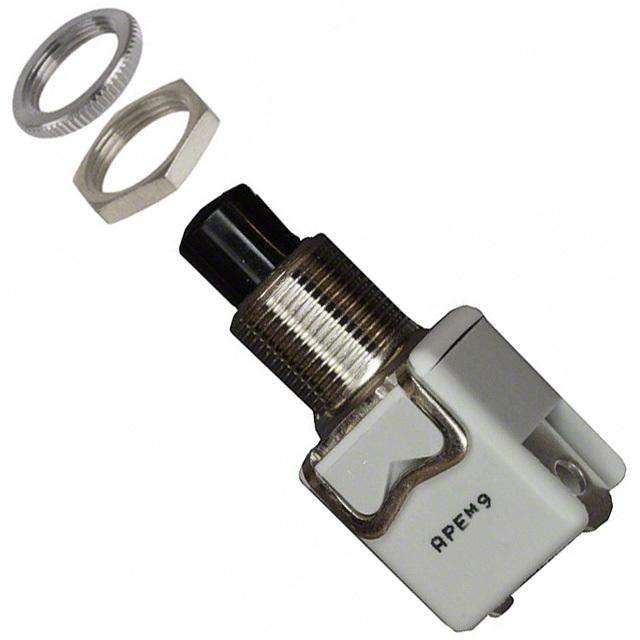

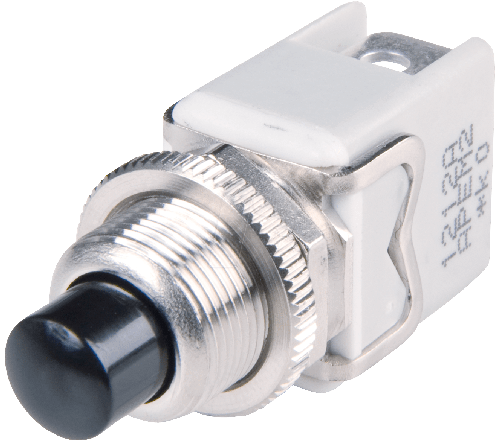

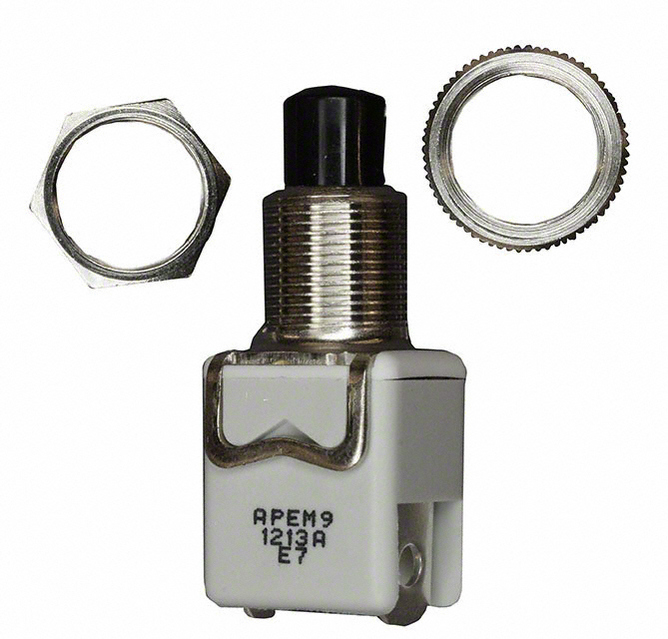

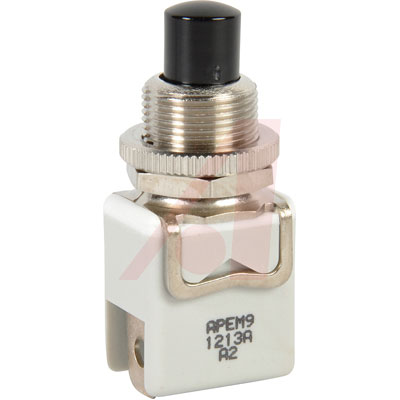

1213A2

Switch Push Button N.O. SPST Round Plunger 8A 250VAC 24VDC Momentary Contact Quick Connect/Solder Lug Panel Mount

Normally open or normally closed, round actuator pushbuttons with solder lug, quick connect or screw terminals. UL and CSA available.

.

*

Features

* **Butt Action Contacts, Double Break**

* **NF EN 61058-1, UL and CSA Approved**

Specification

* **Max Current/Voltage Rating with Resistive Load:**

** — Silver Contacts A: 4 A 250 VAC — 8 A 125 VAC — 4 A 24 VDC — 8 A 12 VDC**

** — Silver Plated Cooper C: 2 A 250 VAC — 3 A 125 VAC — 2 A 24 VDC —3 A 12 VDC**

* **Electrical Life: 10,000 Cycles at Full Load**

* **UL CSA 4 A 250 VAC — 8 A 125 VAC All Models Function 3 NO**

**

* NF EN 61058-1 2 A 250 VAC or 4 A 250 VAC, T55/125°C All Models Except 1212 and 1213
