110-83-632-41-001101

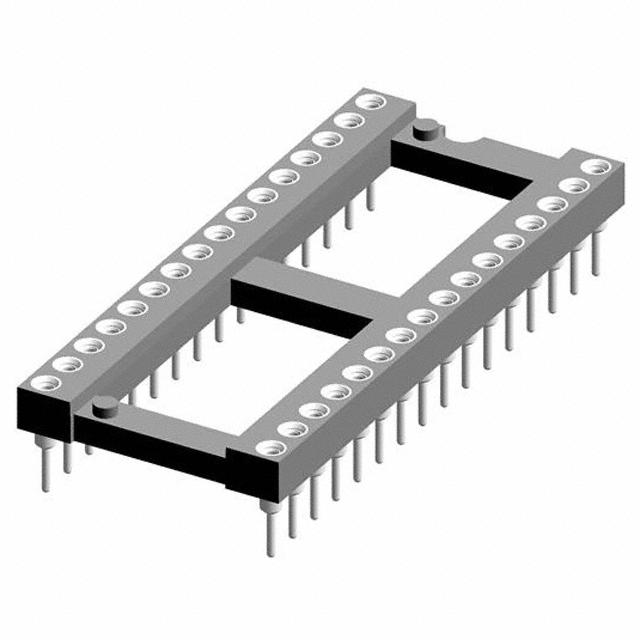

Conn DIP Socket SKT 32POS 2.54mm Solder ST Thru-Hole Box

Cleanly adapt wires together by using this dip socket connector socket manufactured from Precidip. This SKT connector"s 32 contacts that are made out of beryllium copper and plated with gold. It has a maximum voltage rating of 150 VDC|100VAC. It has a socket type gender. It has a straight body orientation. Its pitch is 2.54 mm. This is a 2-row connector. This device has a maximum current rating of 1 A. 110-83-632-41-001101 is housed in polychlorinated terphenyl. This product is 40.6 mm long, 4.2 mm tall and 17.7 mm deep. It is insulated with polychlorinated terphenyl. It uses the solder termination method. This connector socket has an operating temperature of -55 to 125 °C.
