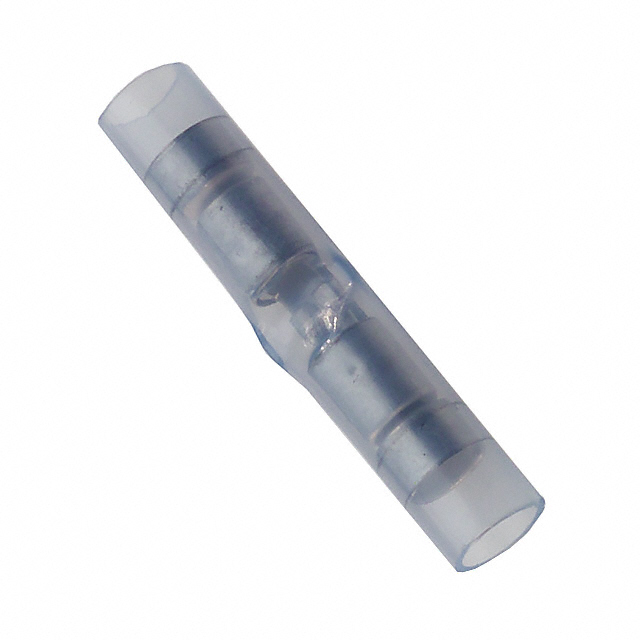

19199-0009图片7
19199-0009图片8
19199-0009图片9
19199-0009概述

Molex 19199系列 蓝色 电线接头连接器 绝缘 平接, 镀锡触点, 16 → 14 AWG

Splices

offers splices for nearly every type of wiring need, from simple wire splices to splices designed for heavy-vibration applications and in harsh environments where sealed connections are required. Whether it is repairing wiring in the field, adding a wire to an existing harness or attaching two or more wires to the same point, Molex has a splice that is perfect for the job. Splices are offered un-insulated or insulated for crimp termination. Whether using solid or stranded wire, several options for splicing are offered by Molex.

19199-0009中文资料参数规格
技术参数

线规 14AWG ~ 16AWG

触点电镀 Tin

额定电压DC 300 V

无卤素状态 Not Reviewed

方向 Straight

工作温度Max 105 ℃

工作温度Min -55 ℃

额定电压Max 300 V

额定电压 300 V

物理参数

颜色 Blue

触点材质 Copper

材质 Copper

绝缘材质 Nylon

工作温度 -55℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

数据手册

在线购买19199-0009
型号: 19199-0009
制造商: Molex 莫仕
描述:Molex 19199系列 蓝色 电线接头连接器 绝缘 平接, 镀锡触点, 16 → 14 AWG
替代型号19199-0009
型号/品牌 代替类型 替代型号对比

19199-0009

Molex 莫仕

当前型号

当前型号

0191990009

莫仕

完全替代

19199-0009和0191990009的区别
