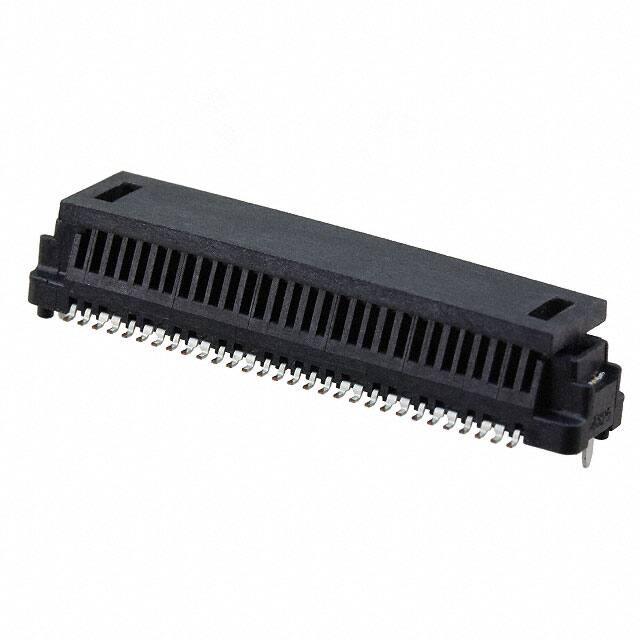

Conn Board to Board RCP 60POS 0.8mm Solder ST SMD Embossed T/R
60 位置 插座,外罩触点 表面贴装型 镀金
得捷:
CONN RCPT 60POS SMD GOLD
艾睿:
Mount this board to board 1714500106 header connector from Molex on a jumper post on your PCB to support physical configuration options. This RCP connector&s;s 60 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. It has a receptacle type gender. Its pitch is 0.8 mm. It has a maximum voltage rating of 29.9 V. This device has a maximum current rating of 0.8 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This connector has an operating temperature of -40 to 105 °C. 1714500106 is housed in black liquid crystal polymer. It uses the solder termination method. This product is 28.8 mm long, 4.5 mm tall and 6.9 mm deep.
Verical:
Conn Board to Board RCP 60 POS 0.8mm Solder ST SMD SpeedStack™ T/R
触点数 60
极性 Female
触点电镀 Gold
排数 2
灼热丝测试标准 Non-Compliant
无卤素状态 Low Halogen
方向 Vertical
电路数 60
针脚数 60
拔插次数 20
额定电流Max 0.8A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 29.9 V
安装方式 Surface Mount
高度 4.5 mm
外壳颜色 Black
触点材质 Copper Alloy
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1714500106 Molex 莫仕 | 当前型号 | 当前型号 |
1714503106 莫仕 | 完全替代 | 1714500106和1714503106的区别 |
