AMP FROM TE CONNECTIVITY 1274584-1 射频/同轴连接器, MINI-BNC, 直角型, 75Ω, PCB安装
* Bayonet locking coupling mechanism * 40% more interconnects in the same area * Compatible with TROMPETER tooling * Ideal for telecommunications and broadband
得捷:
CONN MINI BNC JACK R/A 75OHM PCB
e络盟:
射频/同轴连接器, BNC同轴, 直角隔板安装插座, 焊接, 75 ohm, 磷青铜
艾睿:
Typically used with coaxial cables, this mini-bnc 1274584-1 RF connector from TE Connectivity will minimize transmission line impedance and maintain the cable&s;s shielding at the connections. This connector&s;s body is plated in nickel. It has a receptacle type gender. It has a right angle body orientation. It has an operating frequency of 0 to 2G Hz. This product is 22.45 mm long and 10.92 mm tall with a diameter of 10.92 mm. This rf connector has an operating temperature of -40 to 85 °C. It uses the solder termination method.
Allied Electronics:
Right Angle 75Ohms Through Hole BNC Connector, jack, Solder Termination
安富利:
Conn Mini-BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold
富昌:
2 位置 直角 隔板 Mini BNC RF 插座
Chip1Stop:
Conn Mini-BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold
Verical:
Conn Mini-BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Carton
Newark:
# TE CONNECTIVITY 1274584-1 RF / Coaxial Connector, BNC Coaxial, Right Angle Bulkhead Plug, Solder, 75 ohm, Phosphor Bronze
MASTER:

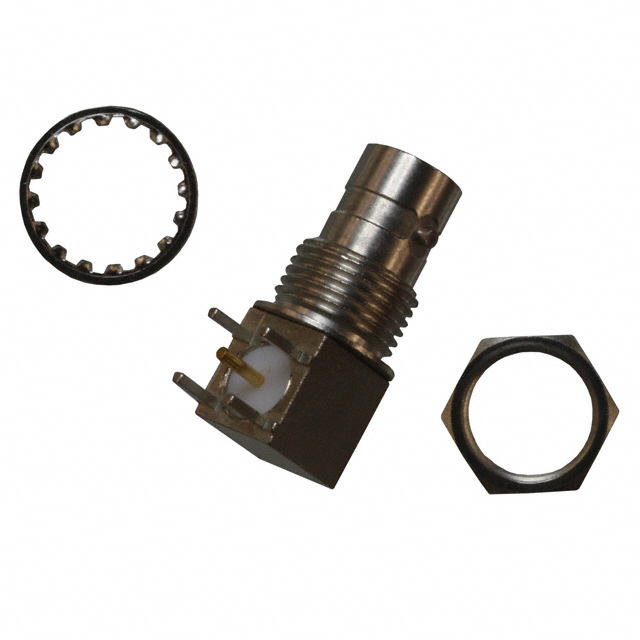

JACK, KIT, R/A, BULKHEAD, PCB, MINI BNC W/HARDWARE -
Powell:
BNC RF Connectors
Online Components:
JACK, R/A, BULKHEAD MOUNT, PCB
ICbanQ:
RF Connectors R/A BULKHEAD JACK
Electro Sonic:
JACK, R/A, BULKHEAD MOUNT, PCB
极性 Male
触点电镀 Gold
频率 2 GHz
绝缘电阻 10000 MΩ
方向 Right Angle
接触电阻 12.0 mΩ
拔插次数 500
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 300 V
安装方式 Through Hole
长度 22.45 mm
高度 10.92 mm
外壳颜色 Silver
触点材质 Phosphor Bronze
介质材料 Teflon
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 射频通信, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694010
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1274584-1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1274563-3 泰科 | 功能相似 | 1274584-1和1274563-3的区别 |
