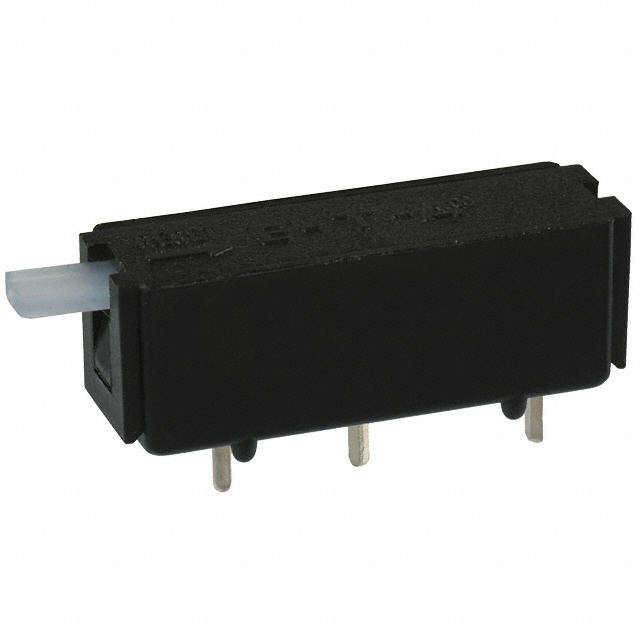

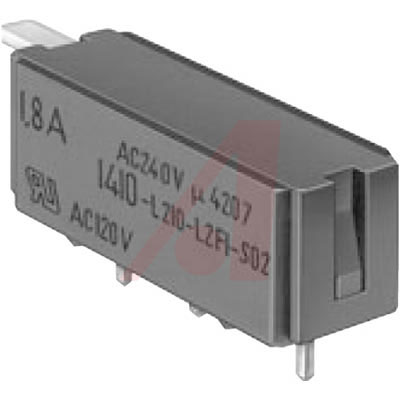

断路器 Miniature thermal circuit breaker for pcb mounting, fast acting
The 1410 series single-pole press-to-reset thermal Circuit Breaker with extremely fast overload switching performance R-type to CBE to EN 60934. Single-hole thread-neck, PCB or integral mounting with a choice of designs. Miniaturised construction minimises PCB real estate required. Type 1410-L2 and 1410-G1 versions feature changeover contacts suitable for providing status output signals. It is suitable for transformers, solenoids, PCBs and hand-held machines.
- .
- Largely temperature-insensitive
- .
- >100MR at 500VDC Insulation resistance
- .
- IP40/IP00 Protection rating
- .
- -20 to 70°C Ambient temperature range
额定电压DC 28 V
接触器类型 Button
额定电压AC 240 V
额定电流 2 A
绝缘电阻 100 MΩ
工作温度Max 100 ℃
工作温度Min -20 ℃
额定电压 240VAC, 28VDC
安装方式 Through Hole
封装 -
长度 33 mm
宽度 9.6 mm
高度 9 mm
封装 -
产品生命周期 Active
包装方式 Tray
制造应用 Motor Drive & Control, Consumer Electronics, Industrial, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1410-L210-L2F1-S02-2A E-T-A Circuit | 当前型号 | 当前型号 |
AN-251FC67207 Multicomp | 功能相似 | 1410-L210-L2F1-S02-2A和AN-251FC67207的区别 |
