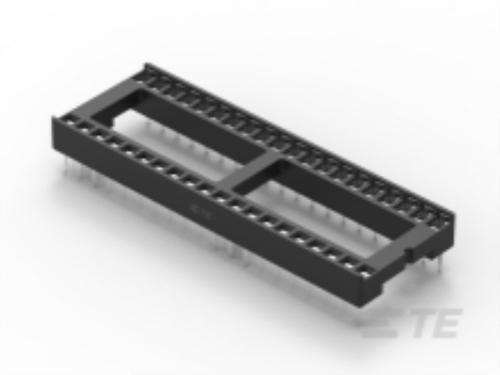

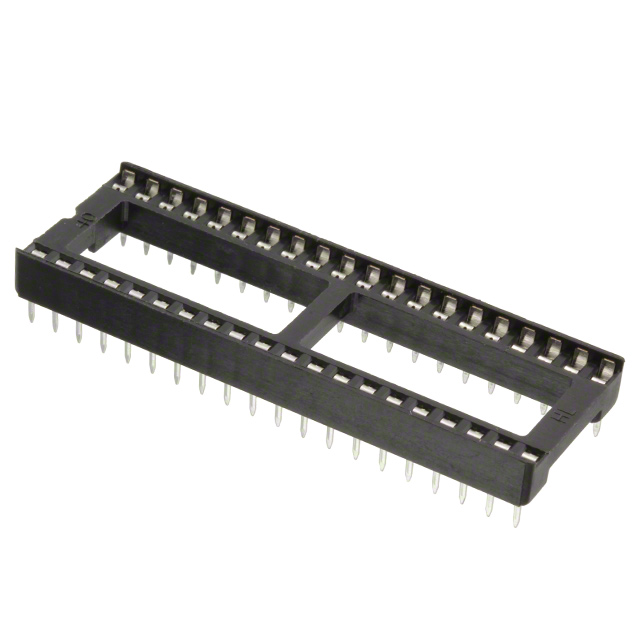

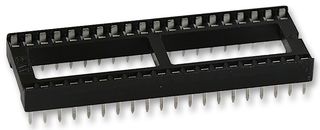

TE CONNECTIVITY 1-2199299-5 芯片和元件插座, DIP插座, 40 触点, 2.54 mm, 15.24 mm, 镀锡触芯
The is a 40-way through hole DIP Socket with 30% glass filled PBT, thermoplastic housing, tin/lead-plated brass/copper sleeve and tin-plated phosphor bronze contacts. Dual leaf mating contact, standard socket style and polarisation mating alignment type.
- .
- Vertical mounting angle
- .
- 20mR Contact resistance
- .
- 1000MR Insulation resistance
- .
- 250VAC/DC Voltage rating
- .
- 1A Current rating
- .
- 1000VAC Minimum dielectric withstanding voltage
- .
- -40 to 105°C Operating temperature range
触点数 40
极性 Female
触点电镀 Tin
额定电流 1 A
绝缘电阻 10000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 40
接触电阻 20 mΩ
额定电流Max 1A/触头
额定电压 250 V
接触电阻Max 20 mΩ
安装方式 Through Hole
封装 Ladder Style
高度 5.1 mm
脚长度 3 mm
封装 Ladder Style
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
产品生命周期 Unknown
包装方式 Tube
制造应用 Industrial, Signal, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536694040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1-2199299-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
SPC15505 Multicomp | 类似代替 | 1-2199299-5和SPC15505的区别 |
1-390262-5 泰科 | 功能相似 | 1-2199299-5和1-390262-5的区别 |
2227MC-40-06-05-F1 Multicomp | 功能相似 | 1-2199299-5和2227MC-40-06-05-F1的区别 |
