112116

AMPHENOL CONNEX  112116  射频/同轴连接器, BNC同轴, 直型插头, 压接, 50 ohm, RG58, 黄铜

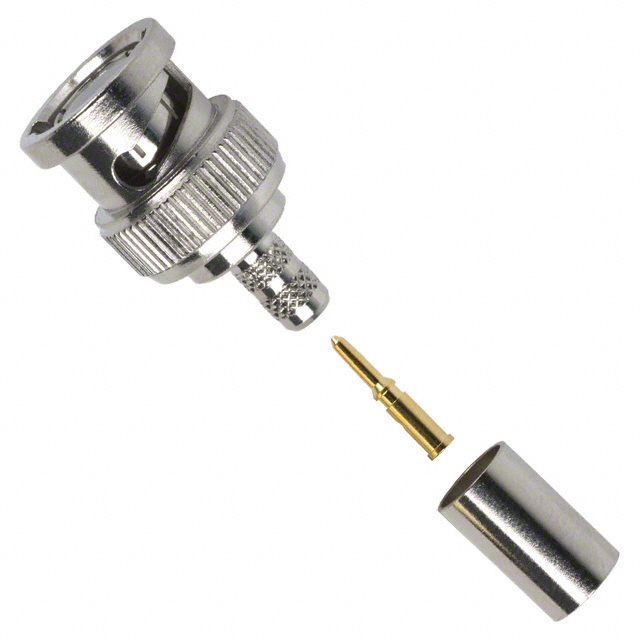

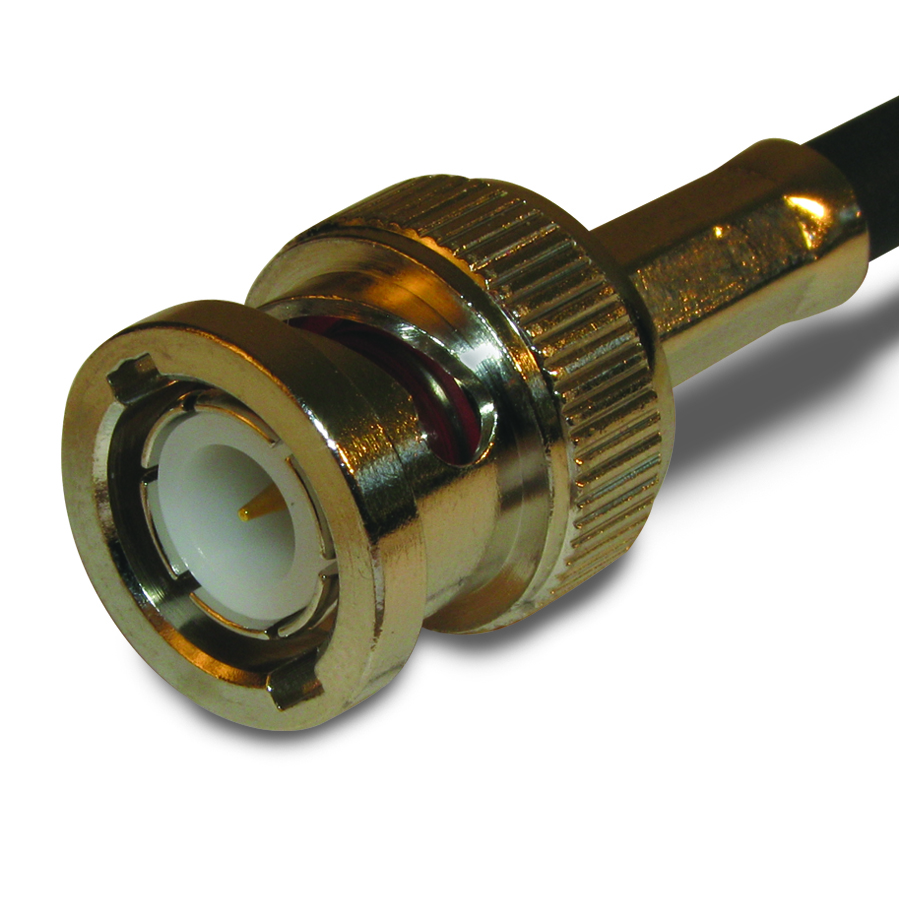

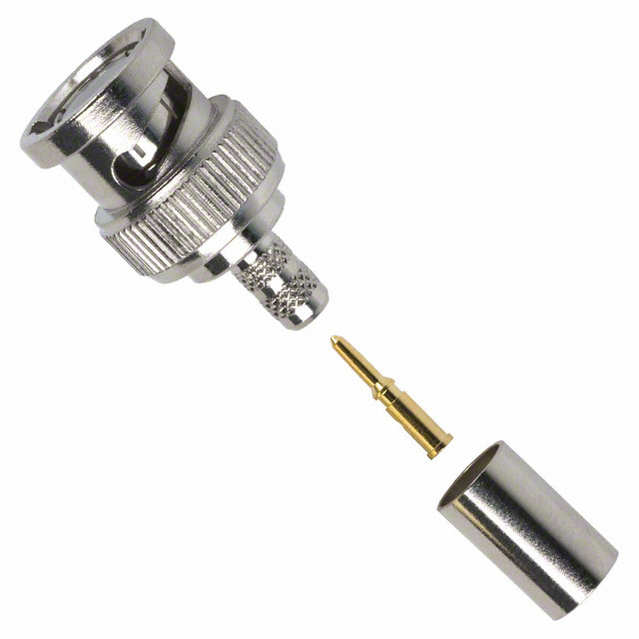

The is a straight crimp BNC Plug with gold-plated brass contacts. This connector is made of brass with nickel finish and a Delrin insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50R BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables. This RF connector is designed for Belden 9907, Belden B7806A, LMR-195, RG-141, RG-303, RG-58, RG-58A and RG-58B cable.

.

Standard polarity

.

5000MR Minimum insulation resistance

.

500 Mating cycles

.

-65 to +165°C Temperature range
