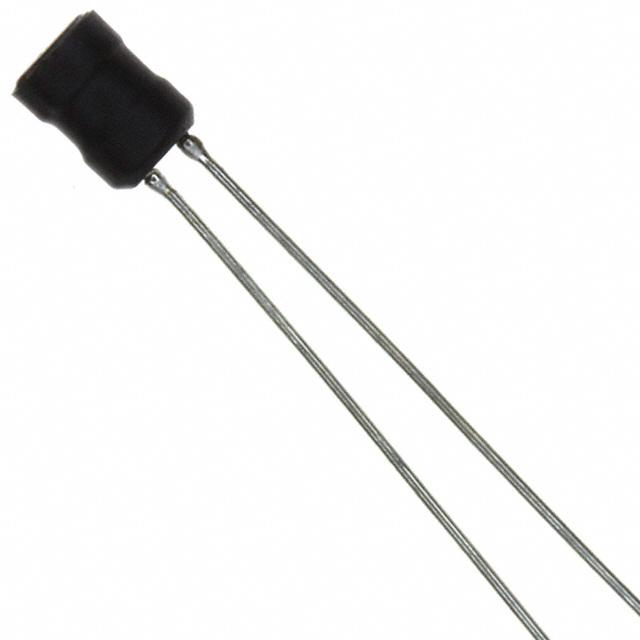

MURATA POWER SOLUTIONS 11R333C 电感, 33uH, 10% 0.55A 通孔安装 径向引线

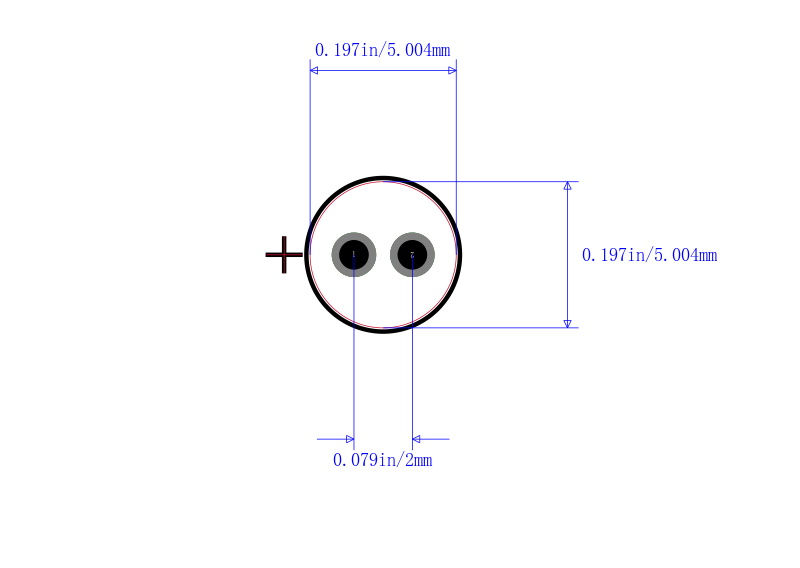

Your electrical design will benefit from this general purpose leaded inductor from Murata Power Solutions. This part has a pitch of 2 mm. This leaded inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has an inductance of 33u H. This product is 7.5 mm tall with a diameter of 5 mm. This leaded inductor has a maximum DC current of 550m A with a maximum resistance of 420m Ohm. This device is made with wirewound technology. Its test frequency is 1K Hz. It has a tolerance of 10%.
额定电流 550 mA
容差 ±10 %
电感 33 µH
电感公差 ±10 %
测试频率 1 kHz
电阻DC） ≤420 mΩ
额定电流DC 550 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.42 Ω

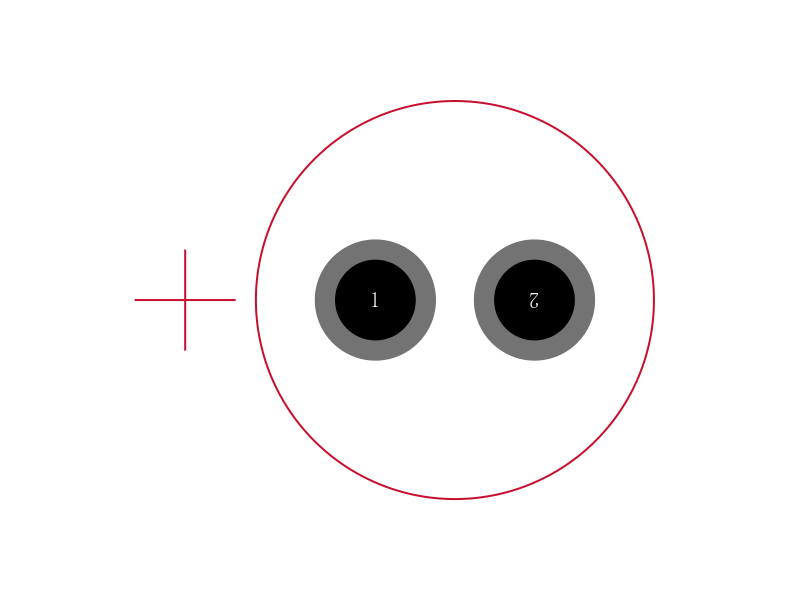

安装方式 Through Hole
引脚数 2
高度 7.5 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
