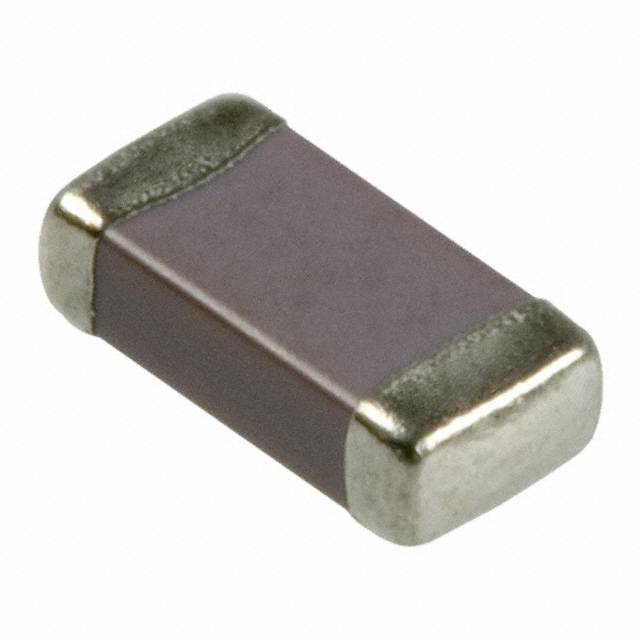

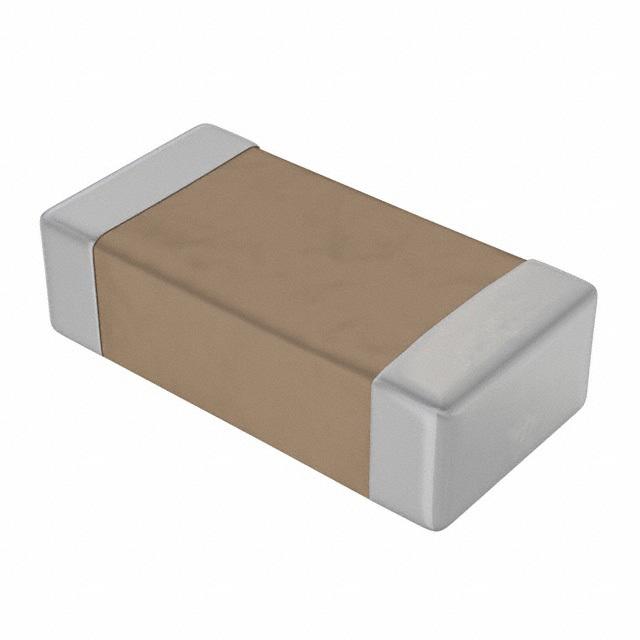

1206 100nF ±20% 200V X7R
0.1 µF ±20% 200V 陶瓷器 X7R 1206(3216 公制)
得捷:
CAP CER 0.1UF 200V X7R 1206
艾睿:
Cap Ceramic 0.1uF 200V X7R 20% Pad SMD 1206 125°C T/R
安富利:
X7R formulations are called “temperature stable” ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55°C to +125°C. This capacitance change is non-linear
额定电压DC 200 V
电容 0.1 µF
容差 ±20 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.52 mm
封装公制 3216
封装 1206
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
12062C104MAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
12065C104MAT2A 艾维克斯 | 类似代替 | 12062C104MAT2A和12065C104MAT2A的区别 |
12063C104MAT2T 艾维克斯 | 类似代替 | 12062C104MAT2A和12063C104MAT2T的区别 |
C3216X7R1H104M 东电化 | 功能相似 | 12062C104MAT2A和C3216X7R1H104M的区别 |
