19401 010250概述

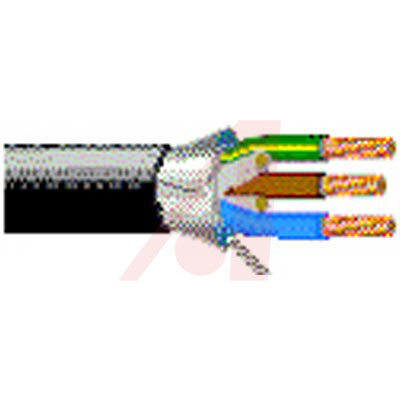

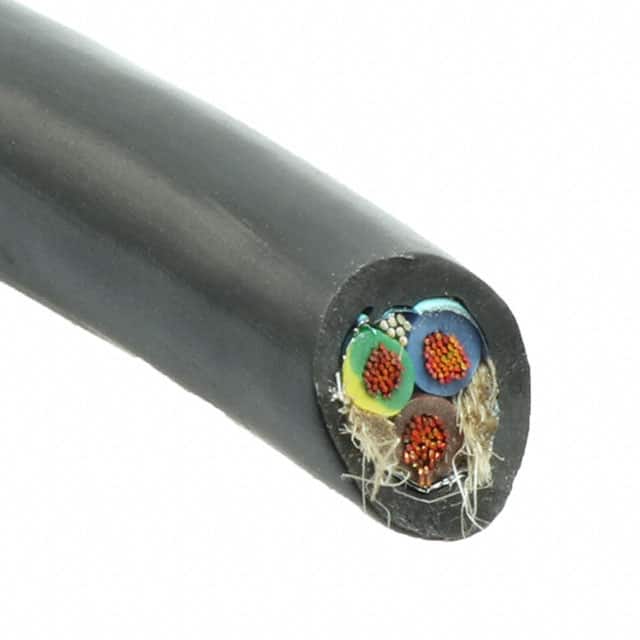

BELDEN 19401 010250 Multiconductor Shielded Cable, Portable Cord SVT, Black, 3Conductor, 18AWG, 0.819mm², 250Ft

Teflon® insulation materials are fluorinated thermoplastic with outstanding thermal, physical, and electrical properties.Teflon® is generally restricted to applications requiring its special characteristics due to relatively high processing costs.Teflon® is especially suitable for internal wiring soldering applications where insulation melt back is a specific problem.Belden Teflon® wire products are outstanding in their resistance to oil, ozone, aromatic hydrocarbons, water, alcohol, gasoline,acids, alkalis, oxidation, heat, sunlight and flame; and also in their ability to remain flexible at low temperatures.

19401 010250中文资料参数规格
技术参数

线规 18 AWG

额定电压DC 300 V

芯数 3

额定电压 300 V

外形尺寸

长度 76.2 m

物理参数

颜色 Black

导体材质 Copper

外壳材质 PVC

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买19401 010250
型号: 19401 010250
制造商: Belden Wire & Cable 百通线材
描述:BELDEN 19401 010250 Multiconductor Shielded Cable, Portable Cord SVT, Black, 3Conductor, 18AWG, 0.819mm², 250Ft
