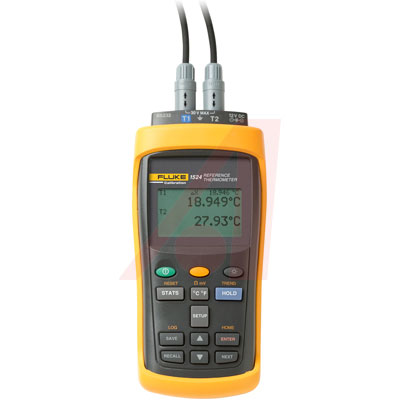

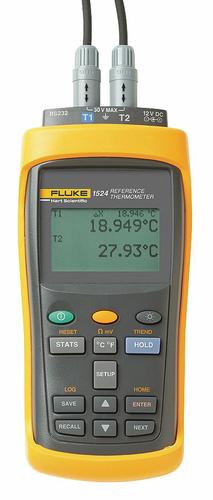

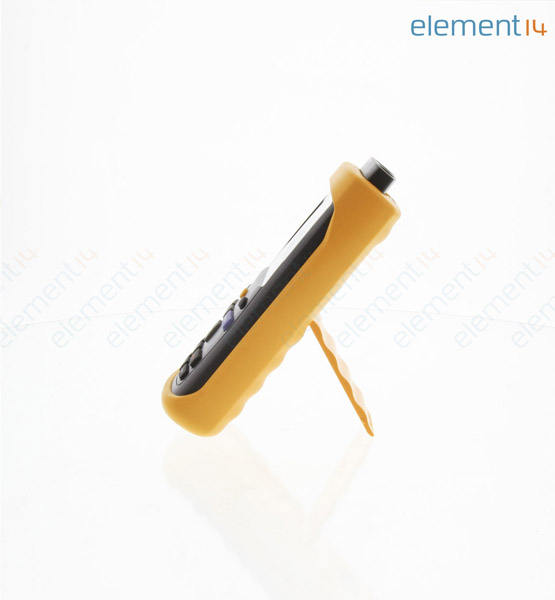

FLUKE CALIBRATION 1524-156 THERMOMETER, 2CH, -200DEG C TO +1750DEG C

Measure, graph and record three sensor types with one tool

The 1523/24 Reference Thermometers from Calibration measure, graph, and record PRTs, thermocouples, and thermistors. These thermometer readouts deliver high accuracy, wide measurement range, logging, and trending, all in a handheld tool you can take anywhere.

The 1523/24 lets you handle field applications, laboratory measurements, and data logging with ease. And with the dual channel measurement capabilities of the model 1524, you can do twice the work in half the time.

Each unit includes: Readout, Weee Card, Power Cord, Rs-232 Cable, Ferrite Instructions Sheet, Ferrite Clamp, Ac Adapter, Software Cd, Report Of Calibration, And Manual.

Features:

* High accuracy

* PRTs: up to ± 0.011 °C

* Thermocouples: up to ± 0.24 °C

* Precision thermistors: ± 0.002 °C

* Two channels

* Memory for logging 15,000 measurements

* Real-time clock for time and date stamps

1524-156中文资料参数规格
外形尺寸

宽度 200 mm

高度 96 mm

其他

Temperature Measuring Range -200°C to +1750°C

External Height 96mm

External Width 200mm

External Depth 47mm

Product Range 1524 Series

SVHC To Be Advised

符合标准

RoHS标准 Non-Compliant

数据手册

在线购买1524-156
型号: 1524-156
制造商: Fluke
描述:FLUKE CALIBRATION 1524-156 THERMOMETER, 2CH, -200DEG C TO +1750DEG C
