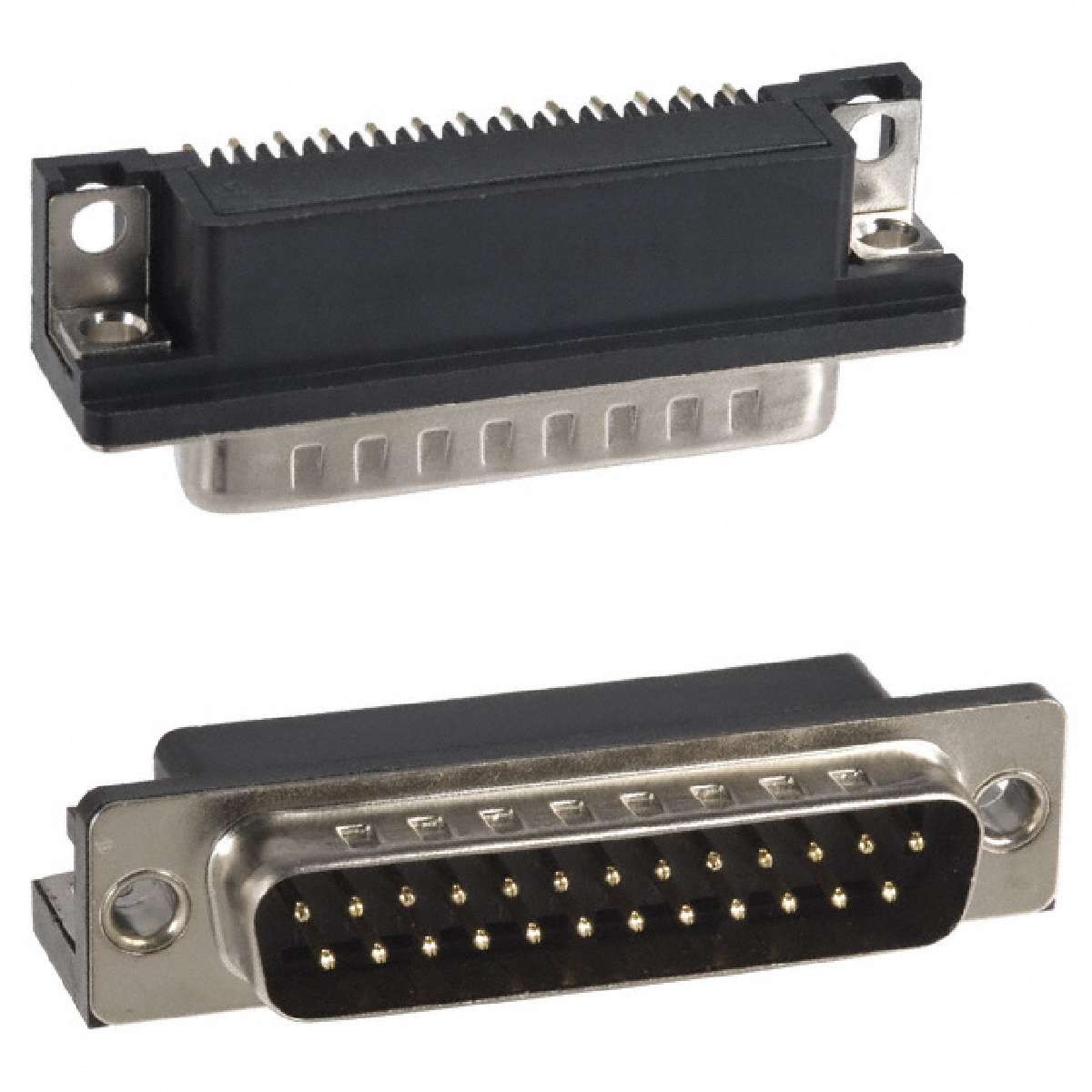

182-025-113R161

182-025-113R161图片1
182-025-113R161图片2
182-025-113R161图片3
182-025-113R161图片4
182-025-113R161图片5
182-025-113R161图片6
182-025-113R161图片7
182-025-113R161概述

D-Sub标准连接器 25P Male R/A inside ground straps

25 Position D-Sub Plug, Male Pins Connector


得捷:
CONN D-SUB PLUG 25POS R/A SLDR


贸泽:
D-Sub标准连接器 25P Male R/A inside ground straps


Chip1Stop:
Conn D-Subminiature M 25 POS 2.77mm Solder RA Thru-Hole 25 Terminal 1 Port


Newark:
# NORCOMP  182-025-113R161  Standard D Sub Connector, 25 Contacts, Plug, DB, 182 Series, Steel Body, Through Hole


182-025-113R161中文资料参数规格
技术参数

触点数 25

极性 Male

触点电镀 Gold

额定电流 5 A

排数 2

易燃性等级 UL 94 V-0

针脚数 25

封装参数

安装方式 Through Hole

引脚间距 2.77 mm

外形尺寸

长度 53.0 mm

宽度 24.9 mm

高度 12.5 mm

引脚间距 2.77 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Brass

工作温度 -55℃ ~ 105℃

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买182-025-113R161
型号: 182-025-113R161
制造商: NorComp
描述:D-Sub标准连接器 25P Male R/A inside ground straps
替代型号182-025-113R161
型号/品牌 代替类型 替代型号对比

182-025-113R161

NorComp

当前型号

当前型号

182-025-112-161

NorComp

完全替代

182-025-113R161和182-025-112-161的区别
