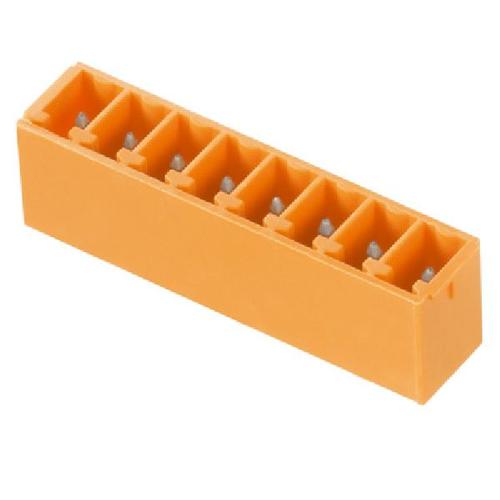

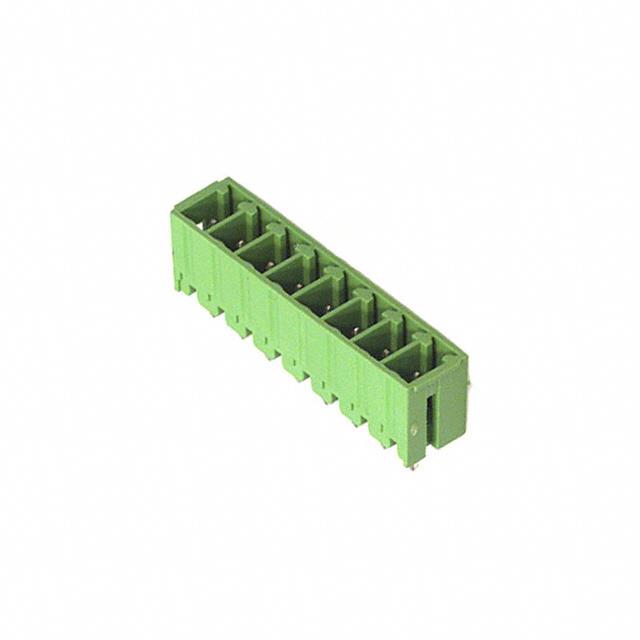

WEIDMULLER 1793660000 Terminal Block, Header, 3.81mm, 8Positions, 10A, 300V, Through Hole Vertical
8 Position Terminal Block Header, Male Pins, Shrouded 4 Side 0.150" 3.81mm Vertical Through Hole
得捷:
TERM BLOCK HDR 8POS VERT 3.81MM
安富利:
Conn Shrouded Header HDR 8 POS 3.81mm Solder ST Thru-Hole Box
Chip1Stop:
Conn Shrouded Header HDR 8 POS 3.81mm Solder ST Thru-Hole Box
Newark:
# WEIDMULLER 1793660000 Terminal Block, Header, 3.81 mm, 8 Positions, 10 A, 300 V, Through Hole Vertical
Electro Sonic:
Conn Shrouded Header 4 Sides HDR 8 POS 3.81mm Solder ST Thru-Hole Box
触点数 8
极性 Male
触点电镀 Tin
额定电流 8.00 A
绝缘电阻 5.00 MΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 8
安装角度 180 °
额定电流Max 10 A
额定电压Max 300 V
安装方式 Through Hole
引脚间距 3.81 mm
宽度 7.15 mm
高度 9.20 mm
引脚间距 3.81 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
工作温度 -50℃ ~ 120℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
