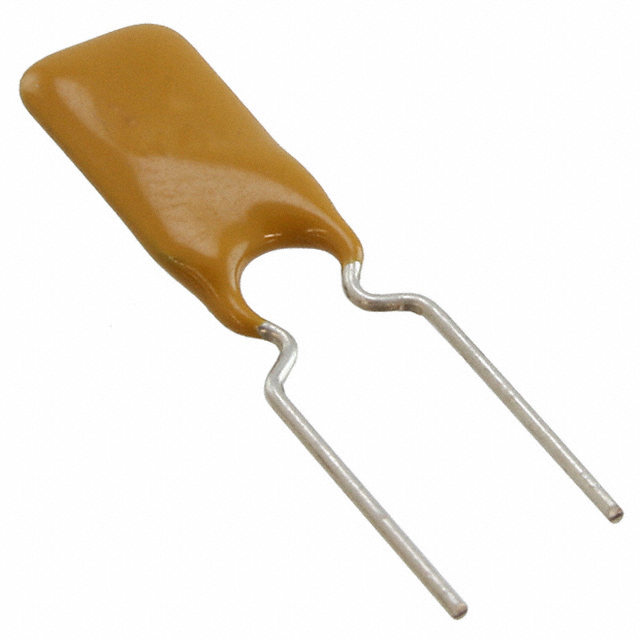

USBR 系列 16 V 1.1 A 保持电流 POLYFUSE® 自恢复 PTC
Resuming operation after a fuse burns out has never been more convenient with this PTC resettable fuse from ! This device has a maximum current rating of 40. This part has a lead diameter of 0.51 mm. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product is 7.4Max mm long, 14.2Max mm tall and 3Max mm deep. This product"s terminal pitch is 5.1typ mm.
额定电压DC 16.0 V
工作电压 16.0 V
跳闸时间 2.3 s
耗散功率 0.7MaxW
电阻 0.14 Ω
保持电流 1.1 A
跳闸电流 2.2 A
额定电流Max 40 A
保持电流Max 1.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 16 VDC
额定电压 16 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 7.4 mm
宽度 7.4 mm
高度 14.2 mm
封装 Radial, Disc
厚度 3 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
16R110BU Littelfuse 力特 | 当前型号 | 当前型号 |
16R110BPR 力特 | 完全替代 | 16R110BU和16R110BPR的区别 |
