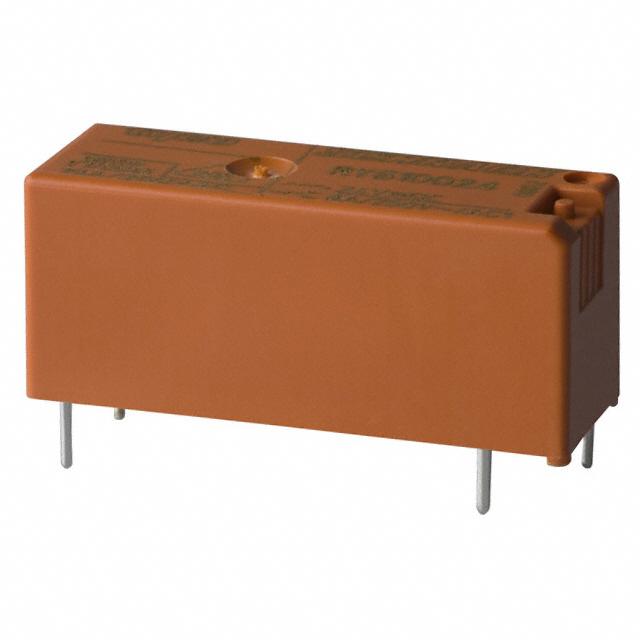

Electromechanical Relay SPDT 8A 18VDC 1.296KΩ Through Hole
RY610018
Product Highlights
Relay Type = Miniature Power PCB Relay
Relay Style = PCB
RYII Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 8 A
得捷:
RELAY GEN PURPOSE SPDT 8A 18V
贸泽:
General Purpose Relays RY610018
艾睿:
Electromechanical Relay 18VDC 1.296KOhm 8A SPDT 28.5x10.1x12.3mm THT Industrial Relay
Allied Electronics:
RY610018, 1-1393225-2
安富利:
Electromechanical Relay SPDT 8A 18VDC 1.296KOhm Through Hole
Chip1Stop:
Electromechanical Relay SPDT 8A 18VDC 1.296KOhm Through Hole
TME:
Relay: electromagnetic; SPDT; Ucoil:18VDC; 8A/250VAC; 8A/30VDC
Verical:
Electromechanical Relay 18VDC 1.296KOhm 8A SPDT 28.5x10.1x12.3mm THT Industrial Relay
MASTER:
RY610018
Powell:
Industrial Relays General Purpose
Online Components:
RY610018
输入电压DC 18.0 V
功耗 220 mW
跌落电压 1.80 V
触点额定电流 8.00 A
线圈电压 18 VDC
线圈电流 13.6 mA
线圈功率DC 220 mW
线圈电阻 1.296 kΩ
额定电流Max 8 A
线圈功率 220 mW
额定电压AC Max 400 V
安装方式 Through Hole
长度 28.5 mm
宽度 10.1 mm
高度 12.3 mm
触点材质 Silver Cadmium Oxide
重量 18 g
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536490080
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1-1393225-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
RY611018 泰科 | 完全替代 | 1-1393225-2和RY611018的区别 |
