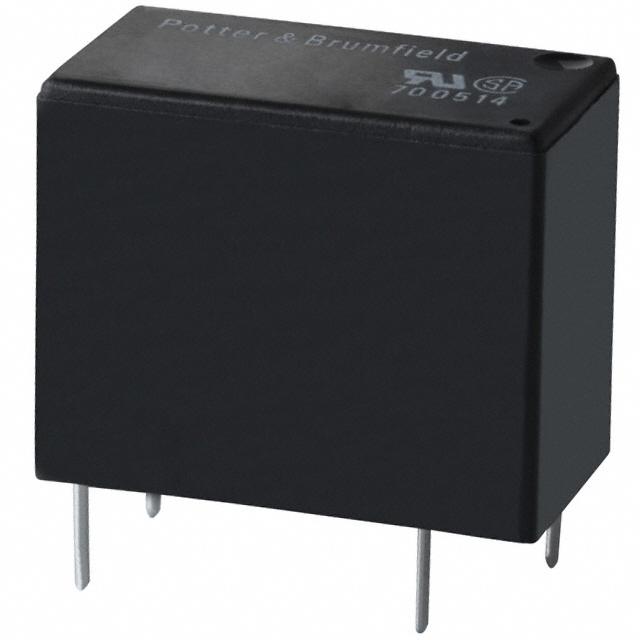

Power Relay 5VDC 3A SPST-NO 18.2mm 10.2mm 14.7mm Through Hole
T77S1D3-05
Product Highlights
T77 Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 3 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
艾睿:
Electromechanical Relay 5VDC 125Ohm 3A SPST-NO 18.2x10.2x14.7mm THT Miniature PCB Relay
安富利:
Electromechanical Relay SPST-NO 3A 5VDC 125Ohm Through Hole
Chip1Stop:
Electromechanical Relay SPST-NO 3A 5VDC 125Ohm Through Hole
Verical:
Electromechanical Relay 5VDC 125Ohm 3A SPST-NO 18.2mm 10.2mm 14.7mm THT Miniature PCB Relay
MASTER:
T77SV1D3_** CUSTOMER DRAWING
Powell:
Industrial Relays General Purpose
Online Components:
T77S1D3-05
Electro Sonic:
T77S1D3-05
额定电压DC 30 V
额定电压AC 250 V
输入电压DC 5.00 V
触点额定电流 3 A
线圈电压 5 VDC
线圈电流 40 mA
线圈功率DC 200 mW
线圈电阻 125 Ω
额定电流Max 3 A
线圈电压DC 5 V
线圈功率 200 mW
开关电流Max 3 A
工作温度Max 105 ℃
工作温度Min -30 ℃
额定电压DC Max 30 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 4
长度 18.2 mm
宽度 10.2 mm
高度 14.7 mm
触点材质 Silver
工作温度 -30℃ ~ 105℃
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
