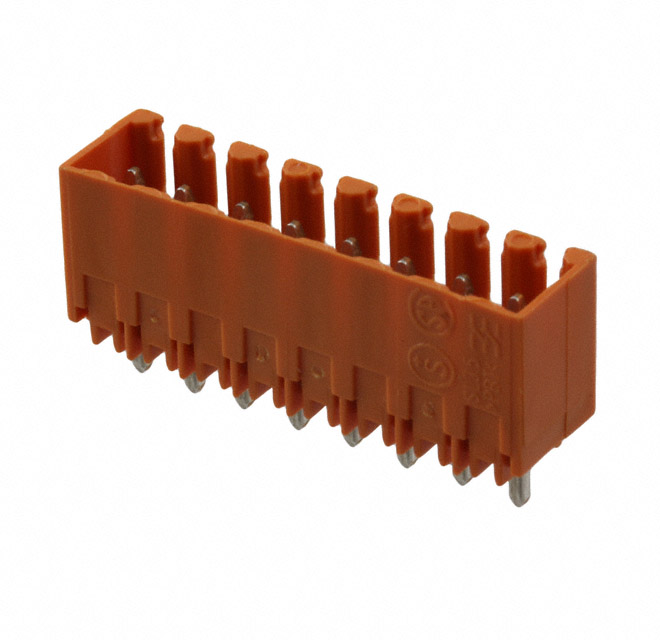

Wire-To-Board Connector, Top Entry, SL 3.5 Series, Through Hole, Plug, 8, 3.5mm
Conn Shrouded Header M 8 POS 3.5mm Solder ST Thru-Hole Box
得捷:
TERM BLOCK HDR 8POS VERT 3.5MM
安富利:
Conn Shrouded Header M 8 POS 3.5mm Solder ST Thru-Hole Box
Verical:
Conn Shrouded Header M 8 POS 3.5mm Solder ST Thru-Hole Box
Newark:
# WEIDMULLER 1604530000 Wire-To-Board Connector, Top Entry, SL 3.5 Series, Through Hole, Plug, 8, 3.5 mm
MASTER:
Conn Shrouded Header M 8 POS 3.5mm Solder ST Thru-Hole Box
Online Components:
Conn Shrouded Header M 8 POS 3.5mm Solder ST Thru-Hole Box
Electro Sonic:
Conn Shrouded Header M 8 POS 3.5mm Solder ST Thru-Hole Box
触点数 8
触点电镀 Tin
绝缘电阻 1.00 MΩ
排数 1
易燃性等级 UL 94 V-0

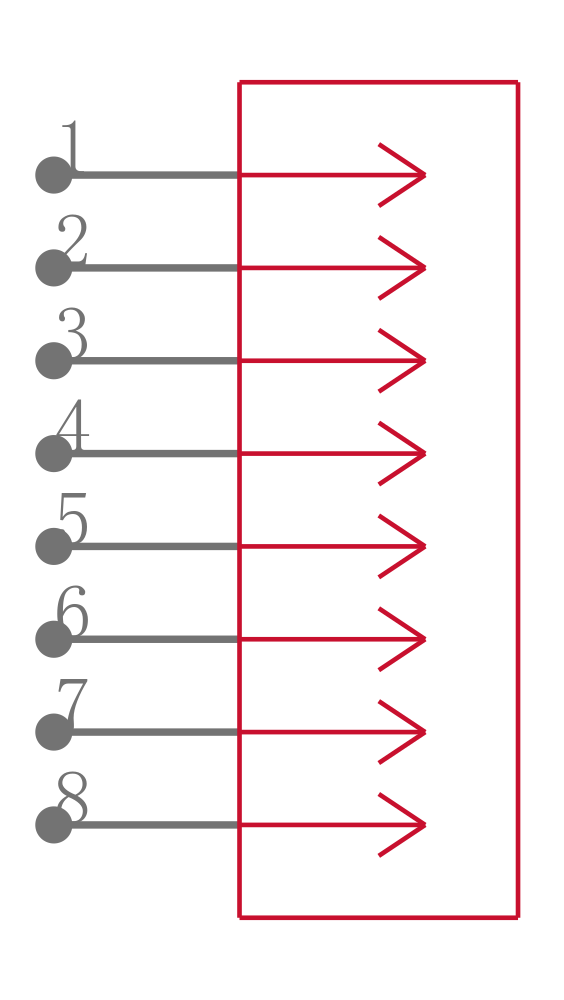

针脚数 8
安装角度 180 °
额定电流Max 10 A
额定电压Max 300 V
安装方式 Through Hole

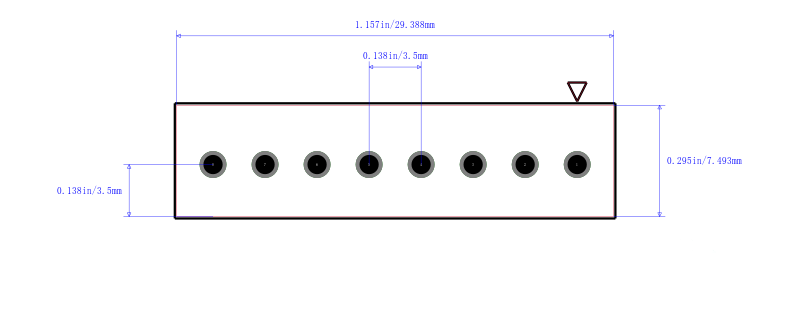

引脚间距 3.50 mm
长度 29.0 mm
宽度 7.50 mm
高度 11.1 mm
引脚间距 3.50 mm
外壳颜色 Orange
颜色 Orange
触点材质 Bronze
工作温度 -50℃ ~ 100℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
