瞬态电压抑制二极管 Transient Voltage Suppression Diodes
137.6V 夹子 109.7A Ipp TVS - 通孔 P600
得捷:
TVS DIODE 85VWM 137.6VC P600
立创商城:
双向 Vrwm:85V 15kW
艾睿:
Littelfuse&s;s 15KPA85CA TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. Its peak pulse power dissipation is 15000 W. Its maximum leakage current is 2 μA. This device&s;s maximum clamping voltage is 137.6 V and minimum breakdown voltage is 94.9 V. Its test current is 5 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C.
Chip1Stop:
Diode TVS Single Bi-Dir 85V 15KW 2-Pin Case P-600 Tape and Ammo
TME:
Diode: transil; 15kW; 99.5V; 109.7A; bidirectional; ±5%; P600
Verical:
TVS Diode Single Bi-Dir 85V 15KW 2-Pin Case P-600 Ammo
Newark:
# LITTELFUSE 15KPA85CA TVS Diode, 15KPA Series, Bidirectional, 85 V, 137.6 V, Axial Leaded, 2 Pins
工作电压 85 V
击穿电压 94.4 V
电路数 1
耗散功率 8 W
钳位电压 137.6 V
最大反向电压(Vrrm) 85V
测试电流 5 mA
最大反向击穿电压 104 V
脉冲峰值功率 15000 W
最小反向击穿电压 94.9 V
击穿电压 94.9 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

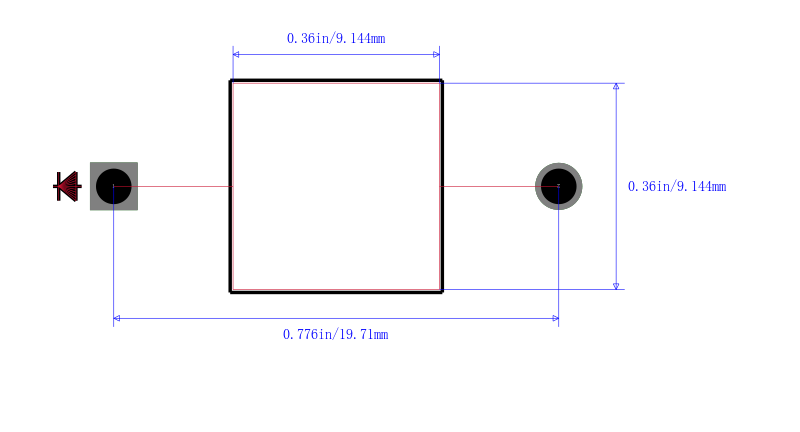

封装 P-600
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
15KPA85CA Littelfuse 力特 | 当前型号 | 当前型号 |
15KP85CA 力特 | 类似代替 | 15KPA85CA和15KP85CA的区别 |
15KPA85CA-B 力特 | 功能相似 | 15KPA85CA和15KPA85CA-B的区别 |
