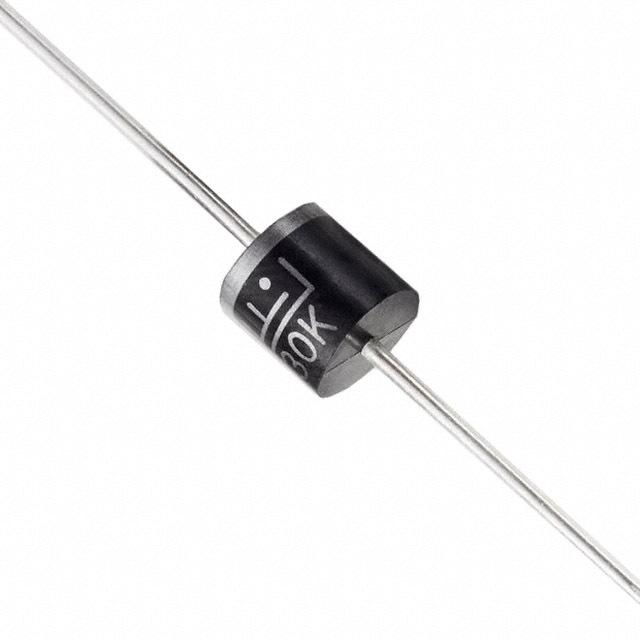

15KPA48A

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

77.7V 夹子 194.3A Ipp TVS - 通孔 P600

得捷:
TVS DIODE 48VWM 77.7VC P600

立创商城:
单向 Vrwm:48V 15kW

e络盟:
TVS二极管, 15KPA series, 单向, 48 V, 77.7 V, P600, 2 引脚

艾睿:
Take the extra step in your circuitry by implementing surge protection with this 15KPA48A TVS diode from Littelfuse. Its test current is 5 mA. Its maximum leakage current is 2 μA. This device&s;s maximum clamping voltage is 77.7 V and minimum breakdown voltage is 53.6 V. Its peak pulse power dissipation is 15000 W. This TVS diode has an operating temperature range of -55 °C to 175 °C.

Chip1Stop:
Diode TVS Single Uni-Dir 48V 15KW 2-Pin Case P-600 Tape and Ammo

TME:
Diode: transil; 15kW; 56.2V; 194.3A; unidirectional; ±5%; P600

Verical:
TVS Diode Single Uni-Dir 48V 15KW 2-Pin Case P-600 Ammo

Newark:
# LITTELFUSE  15KPA48A  TVS Diode, 15KPA Series, Unidirectional, 48 V, 77.7 V, Axial Leaded, 2 Pins
