瞬态电压抑制二极管 Transient Voltage Suppression Diodes
"s TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. Its maximum leakage current is 2 μA. Its test current is 5 mA. Its peak pulse power dissipation is 15000 W. This device"s maximum clamping voltage is 288.5 V and minimum breakdown voltage is 201.1 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C.
击穿电压 201.1 V
钳位电压 288.5 V
测试电流 5 mA
脉冲峰值功率 15000 W
最小反向击穿电压 201.1 V
击穿电压 201.1 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

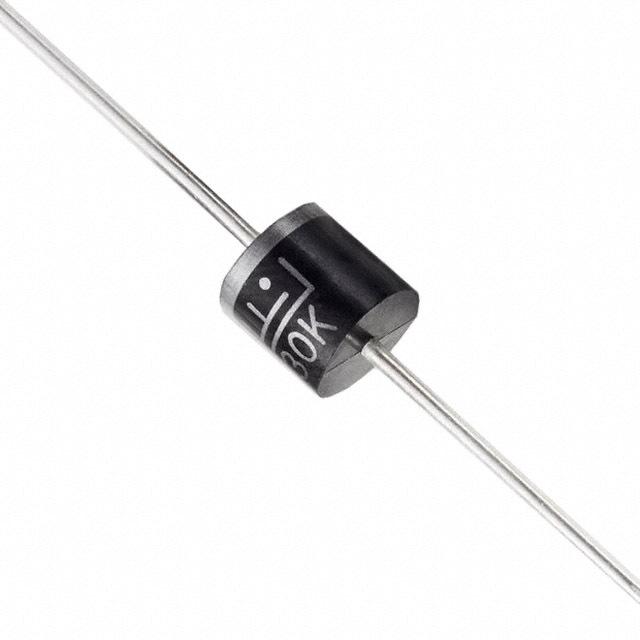

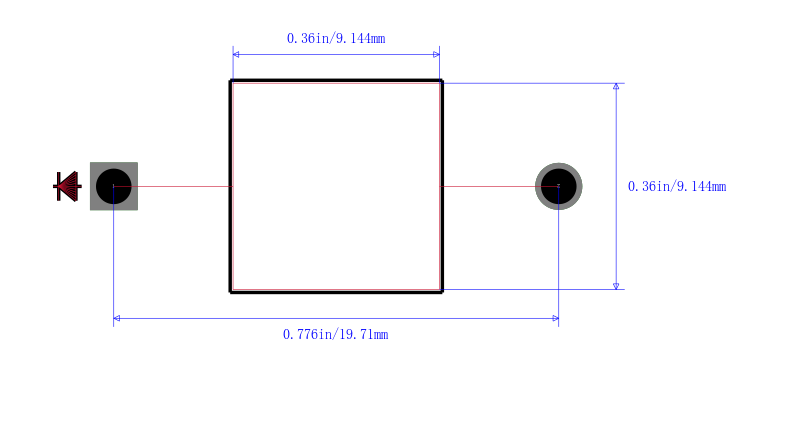

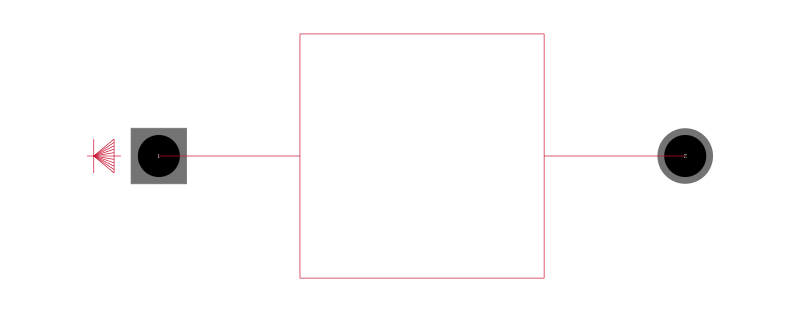

封装 P-600
长度 9.1 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
15KPA180A Littelfuse 力特 | 当前型号 | 当前型号 |
15KP180A 力特 | 类似代替 | 15KPA180A和15KP180A的区别 |
