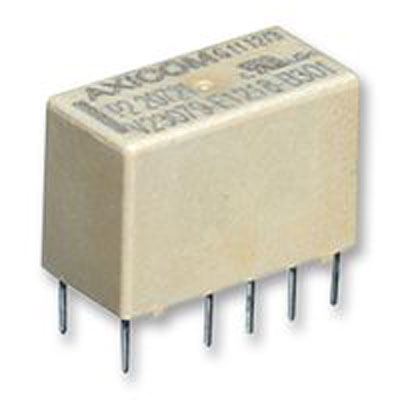

P2 系列 2 A 双刀双掷 5 VDC 通孔 通信/信号 PCB 继电器
V23079A1001B301
Product Highlights
V23079 / P2 Relay Series
DC Actuating System
Input Voltage = 5 VDC
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 2 Amps.
得捷:
V23079A1001B301
立创商城:
1393788-3
艾睿:
Signal Relay 5VDC 2A DPDT 14.5mm 7.2mm 9.8mm THT Automotive Medical
Jameco:
Electromechanical Relay Double Pole Double Throw DPDT 2A 5VDC 178Ω Through Hole
安富利:
Electromechanical Relay DPDT 5A 5VDC 178Ohm Through Hole
Chip1Stop:
Electromechanical Relay 5VDC 178Ohm 2A DPDT 14.5mm 7.2mm 9.8mm THT Signal Relay Automotive Medical
TME:
Relay: electromagnetic; DPDT; Ucoil:5VDC; 0.5A/125VAC; 2A/30VDC
Verical:
Electromechanical Relay 5VDC 178Ohm 2A DPDT 14.5mm 7.2mm 9.8mm THT Signal Relay Automotive Medical
MASTER:
Signal Relay - 5 VDC - DPDT - 2 A - P2 Series - Through Hole - DC Monostable.
Powell:
3G COM Relay P2
Online Components:
V23079A1001B301
Electro Sonic:
Signal Relay - 5 VDC - DPDT - 2 A - P2 Series - Through Hole - DC Monostable.
触点电镀 Gold
额定电压DC 220 V
额定电压AC 250 V
绝缘电阻 >1000 MΩ
输入电压DC 5.00 V
触点类型 DPDT
功耗 130 mW
触点额定电流 2 A
线圈电压 5 VDC
线圈电流 28.09 mA
线圈功率DC 140 mW
线圈电阻 178 Ω
额定电流Max 2 A
线圈电压DC 5 V
额定功率Max 60W, 62.5VA
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 220 V
额定电压AC Max 250 V
接触电阻Max <50 mΩ
安装方式 Through Hole
引脚数 8
封装 DIP
长度 14.5 mm
宽度 7.2 mm
高度 9.8 mm
封装 DIP
触点材质 Silver Nickel, Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1393788-3 TE Connectivity 泰科 | 当前型号 | 当前型号 |
V23079-A1001-B301 泰科 | 完全替代 | 1393788-3和V23079-A1001-B301的区别 |
D3009 泰科 | 类似代替 | 1393788-3和D3009的区别 |
