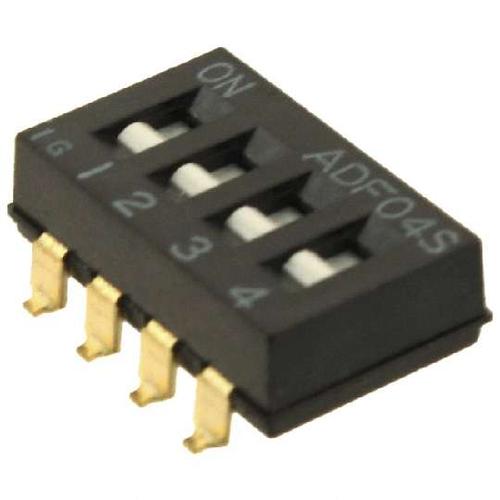

TE CONNECTIVITY / ALCOSWITCH 1-1825059-3 开关, DIP, 4位, SPST, 齐平滑动式
ADF04S04=DIP SWT,FLUSH,SMT-GW
Product Highlights
DIP Switch
PCB Mount Style = Surface Mount
Single Pole - Single Throw Configuration Pole-Throw
Actuator Style = Flush, Slide
Not Sealed
立创商城:
1-1825059-3
e络盟:
DIP / SIP开关, 4 电路, 滑动式, SMD, SPST, 24 V, 100 mA
艾睿:
Add current flow control to your printed circuit simply through the use of TE Connectivity&s;s 1-1825059-3 dual in-line package switch. This device has a maximum current rating of 0.1 A @ 24VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The 1-1825059-3 DIP switch has a gull wing termination style. This product&s;s terminal pitch is 2.54 mm. This product is 12.14 mm long, 4.5 mm tall and 9.3 mm deep. The maximum DC voltage rating is 24 VDC.
安富利:
Switch DIP OFF ON SPST 4 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube
Chip1Stop:
Switch DIP OFF ON SPST 4 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube
Verical:
Switch DIP OFF ON SPST 4 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD Box/Tube
MASTER:
DIP SWITCH, ADF-SMT SERIES
Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard
Online Components:
ADF04S04=DIP SWT,FLUSH,SMT-GW
Electro Sonic:
ADF04S04=DIP SWT,FLUSH,SMT-GW
触点电镀 Nickel, Gold Flash
额定电压DC 24 V
触点类型 SPST
电路数 4
易燃性等级 UL 94 V-0
针脚数 4
额定电流Max 0.1A @24VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
封装 DIP
长度 12.14 mm
宽度 9.3 mm
高度 3.5 mm
封装 DIP
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-1825059-3 TE Connectivity 泰科 | 当前型号 | 当前型号 |
SDA04H0SBR C&K Components | 功能相似 | 1-1825059-3和SDA04H0SBR的区别 |
SDA04H1SBD C&K Components | 功能相似 | 1-1825059-3和SDA04H1SBD的区别 |
SDA04H0SBD C&K Components | 功能相似 | 1-1825059-3和SDA04H0SBD的区别 |
