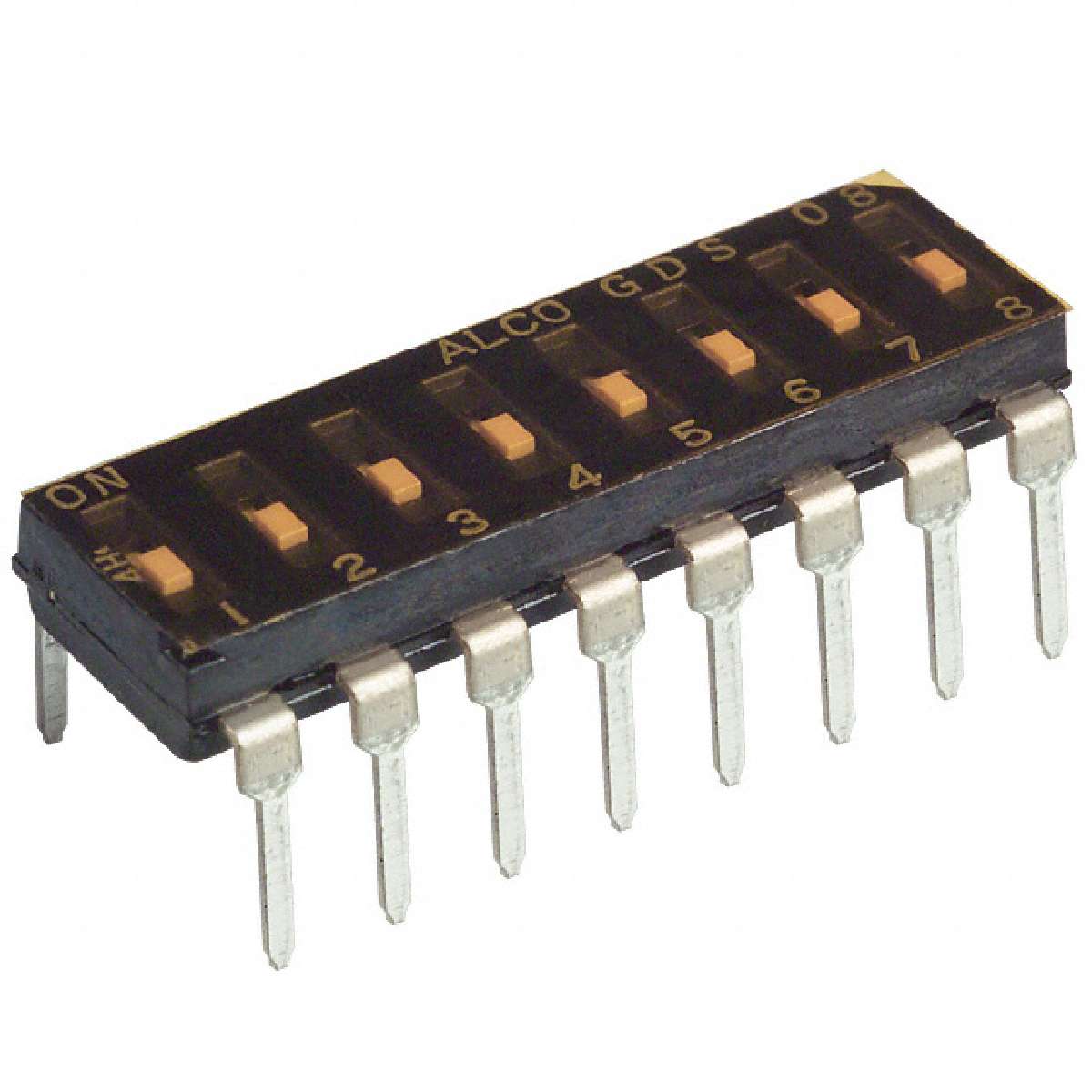

1-1825006-3

8 单刀单掷 极 掷 2.54 mm 中心线 密封 通孔 Dip 开关

GDS0804=DIP SW,SLIDE,THRU/HL

Product Highlights

DIP Switch

PCB Mount Style = Through Hole

Single Pole - Single Throw Configuration Pole-Throw

Actuator Style = Slide

Sealed

艾睿:
Easily customize your printed circuit with the use of the 1-1825006-3 dual in-line package switch, designed from TE Connectivity. It has a SPST configuration. This device has a maximum current rating of 0.025 A @ 24VDC. This DIP switch has an operating temperature range of -45 °C to 100 °C. The 1-1825006-3 DIP switch has a PC pin termination style. This product is 20.18 mm long, 2.7 mm tall and 8.4 mm deep. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm.

安富利:
Switch DIP ON OFF SPST 8 Slide 0.025A 24VDC PC Pins 2.54mm Thru-Hole T/R

Chip1Stop:
Switch DIP OFF ON SPST 8 Flush Slide 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube

Verical:
Switch DIP OFF ON SPST 8 Flush Slide 0.025A 24VDC PC Pins 2.54mm Thru-Hole Tube

MASTER:
DIP SWITCH ASSEMBLY GDS SERIES

Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard

Online Components:
GDS0804=DIP SW,SLIDE,THRU/HL

Electro Sonic:
GDS0804=DIP SW,SLIDE,THRU/HL
