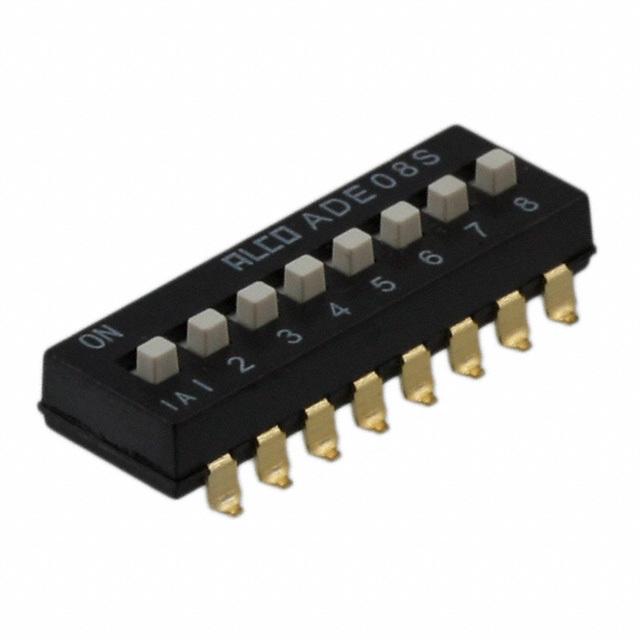

1-1825058-9

8 位置 单刀单掷 凸出式 滑动 未密封 2.54 mm 间距 表面贴装 DIP 开关

高架执行器 DIP

高压摩擦触点可用水或溶液清洁，无需胶带密封

可耐汽相回流焊接或波焊条件

触点电阻：50mΩ

### 注

除非另有说明，否则这些开关不适于浸泡清洗。

欧时:
DIP switch,SMT,SPST,8 pos,extended slide

立创商城:
1-1825058-9

艾睿:
Thanks to the 1-1825058-9 dual in-line package switch from TE Connectivity, you can ensure that there is some type of current flow control within your printed circuit. This device has a maximum current rating of 0.1 A @ 24VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The 1-1825058-9 DIP switch has a gull wing termination style. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 24 VDC. This product is 22.3 mm long, 4.49 mm tall and 9.29 mm deep.

安富利:
Switch DIP OFF ON SPST 8 Extended Slide 0.1A 24VDC Gull Wing 2.54mm SMD

Chip1Stop:
Switch DIP OFF ON SPST 8 Extended Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube

Verical:
Switch DIP OFF ON SPST 8 Extended Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube

MASTER:
DIP SWITCH, ADE-SMT SERIES

Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard

Online Components:
ADE08S04=DIP SWTCH,EXT,SMT-GW

Electro Sonic:
ADE08S04=DIP SWTCH,EXT,SMT-GW
