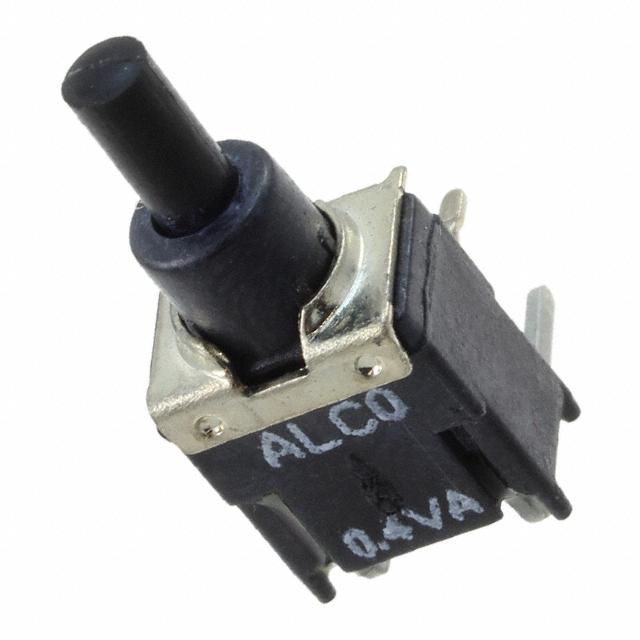

TSP 系列 黑色 单刀单掷 直角 圆形 开/关 瞬时 按键 开关
TSPD11CGRA004
Product Highlights
Switch - Mechanical
Not Tactile
Single Pole - Single Throw Configuration Pole-Throw
Contact Rating = 0.4VA
Process Sealed
艾睿:
Turn on and off portions of your circuit design with the aid of this 1571990-4 push button switch manufactured from TE Connectivity. It has a SPST configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The 1571990-4 push switch has a PC pin termination style. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC. This product is 8.13 mm long.
安富利:
Switch Push Button OFF ON SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Loose Piece
Chip1Stop:
Switch Push Button OFF ON SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Loose Piece
Verical:
Switch Push Button OFF ON SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Loose
MASTER:
SEALED PUSHBUTTON SWITCH SINGLE POLE, TSP SERIES, ROHS COMPLIANT
Powell:
Pushbutton Switches
Online Components:
TSPD11CGRA004
Electro Sonic:
TSPD11CGRA004
Win Source:
SWITCH PUSH SPST-NO 0.4VA 20V / Pushbutton Switch SPST-NO Standard Through Hole, Right Angle
触点电镀 Gold over Nickel
额定电压DC 20 V
额定电压AC 20 V
排数 1
触点类型 SPST
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max 20 mΩ
安装方式 Through Hole
封装 Thermoplastic LCP
长度 8.13 mm
宽度 4.95 mm
高度 18.54 mm
封装 Thermoplastic LCP
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509031
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1571990-4 TE Connectivity 泰科 | 当前型号 | 当前型号 |
TSPD11CGRA0 泰科 | 完全替代 | 1571990-4和TSPD11CGRA0的区别 |
