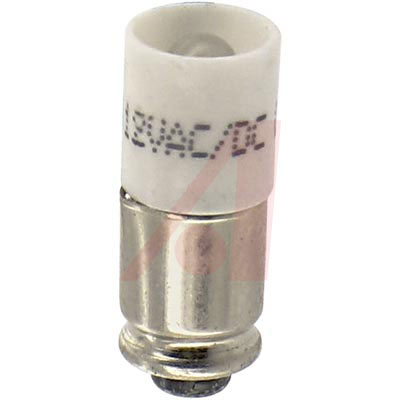

CML INNOVATIVE TECHNOLOGIES 1512125W3D LED Replacement Lamp, Midget Groove, White, T-1 3/4 5mm, 350mcd
15121 Series T-1-3/4 Midget Groove Based LED
* Extremely high brightness with low current draw
* Low heat generation
* Shock and vibration proof
Long life typically 100K hours vs. 10K hours.
Allied Electronics:
Lamp; LED; T1-3/4; Midget Groove; White; Diffused; 12VAC/VDC; 7/14mAAC/mADC; 700mcd
Chip1Stop:
LED Uni-Color White 2-Pin
Newark:
# CML INNOVATIVE TECHNOLOGIES 1512125W3D LED Replacement Lamp, Midget Groove, White, T-1 3/4 5mm, 350 mcd
电源电压DC 12.0 V
额定电压DC 12 V
额定电流 14 mA
正向电压 12 V
发光强度 350 mcd
透镜样式 Diffused
正向电压Max 12 V
正向电流Max 14 mA
工作温度Max 60 ℃
工作温度Min -20 ℃
额定电压 12 VAC
电源电压 12 V
安装方式 Through Hole
封装 T-1-3
高度 16.0 mm
直径 6.10 mm
封装 T-1-3
颜色 White
工作温度 -20℃ ~ 60℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
