Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 0.98N Thru-Hole Loose
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 0.98N Thru-Hole Loose Piece
艾睿:

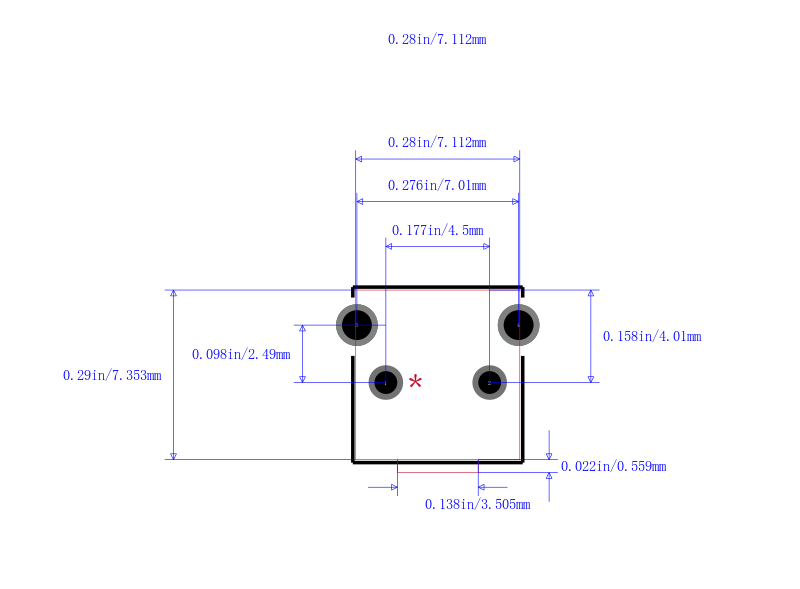

This micro-miniature 1825027-1 tactile switch from TE Connectivity makes it possible to turn on or off your circuit by the use of pressure. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has an operating temperature range of -35 °C to 85 °C. The 1825027-1 tactile switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product is 8.41 mm long, 7.01 mm tall and 7.16 mm deep. This brown round button actuator is 0.65 mm long.
安富利:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 0.98N Thru-Hole Loose Piece
Chip1Stop:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 0.98N Thru-Hole Loose
Verical:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 0.98N Thru-Hole Loose
MASTER:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 0.98N Thru-Hole Loose Piece
Online Components:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 0.98N Thru-Hole Loose Piece
Electro Sonic:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 0.98N Thru-Hole Loose Piece
