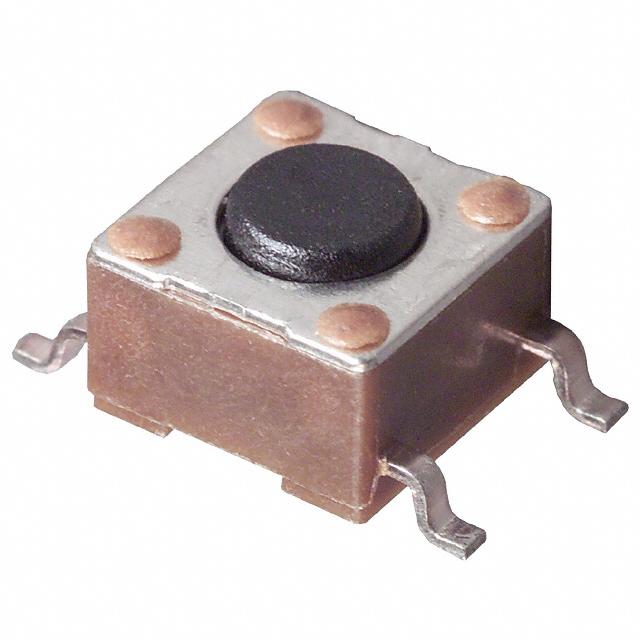

Switch Tactile OFF ON SPST Round Button Gull Wing 0.05A 24VDC 1000000Cycles 1.57N SMD Loose
顶部触动 触摸 SPST-NO 表面贴装型
艾睿:
Switch Tactile OFF ON SPST Round Button Gull Wing 0.05A 24VDC 1000000Cycles 1.57N SMD Loose Piece
安富利:
Switch Tactile OFF ON SPST Round Button Gull Wing 0.05A 24VDC 1000000Cycle 1.57N SMD Loose Piece
Chip1Stop:
Switch Tactile OFF ON SPST Round Button Gull Wing 0.05A 24VDC 1000000Cycles 1.57N SMD Loose Piece
Verical:
Switch Tactile OFF ON SPST Round Button Gull Wing 0.05A 24VDC 1000000Cycles 1.57N SMD Loose
MASTER:
MICRO MINIATURE PUSHBUTTON SWITCH FSM JSM
Powell:
Tactile Switches
Online Components:
FSM2JSMAS=6MM TACT SWITCH, SMT 160gf
Electro Sonic:
FSM2JSMAS=6MM TACT SWITCH, SMT 160gf
触点电镀 Silver
额定电压DC 24 V
额定电流Max 0.05A @24VDC
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压DC Max 24 V
接触电阻Max 100 mΩ
安装方式 Surface Mount
封装 PPS
长度 6 mm
宽度 10 mm
高度 4.39 mm
封装 PPS
触点材质 Stainless Steel
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509033
