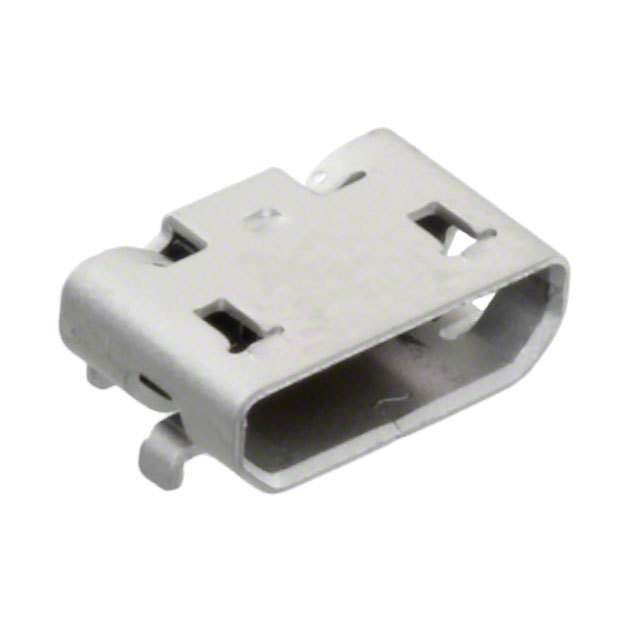

1050171001

Micro-B 母座 卧贴

USB - 微 B 型 USB 2.0 插座 5 位 表面贴装，直角

立创商城:
Micro-B 母座 卧贴

得捷:
CONN RCPT USB2.0 MICRO B SMD R/A

艾睿:
The usb type b 1050171001 audio and video connector from Molex is the best when it comes to handling your video and audio needs. This RCP connector&s;s 5 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. This connector has a single port. It has a right angle body orientation. It has a receptacle type gender. Its pitch is 0.65 mm. It has a maximum voltage rating of 30 VAC. This device has a maximum current rating of 1.8 A/contact. 1050171001 is housed in liquid crystal polymer. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature range of -30 °C to 85 °C. Its 5 terminals use the solder termination method. This product is 7.5 mm long, 2.9 mm tall and 5 mm deep.

安富利:
Conn USB Type B RCP 5 POS 0.65mm Solder RA Thru-Hole 5 Terminal 1 Port Embossed T/R

Chip1Stop:
Conn USB Type B RCP 5 POS 0.65mm Solder RA Thru-Hole 5 Terminal 1 Port Embossed T/R

Verical:
Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port T/R

儒卓力:
**05P MICRO USB B SMT BOTTON MOUN **
