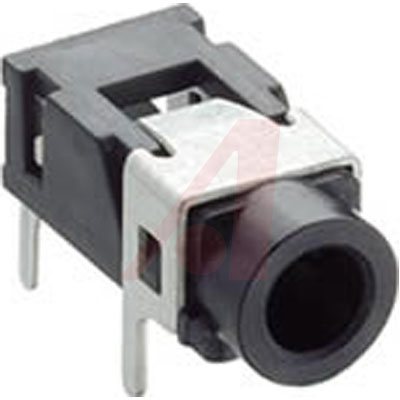

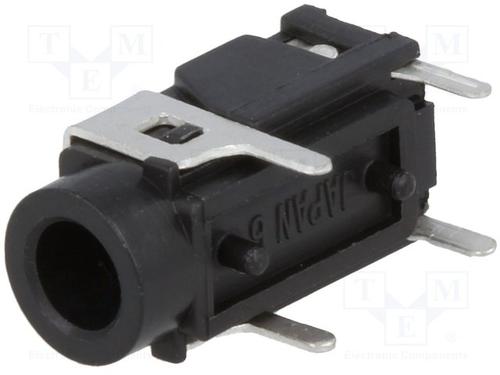

Conn 3.5MM Stereo Jack F 3POS Solder RA Thru-Hole 3 Terminal 1Port Bulk

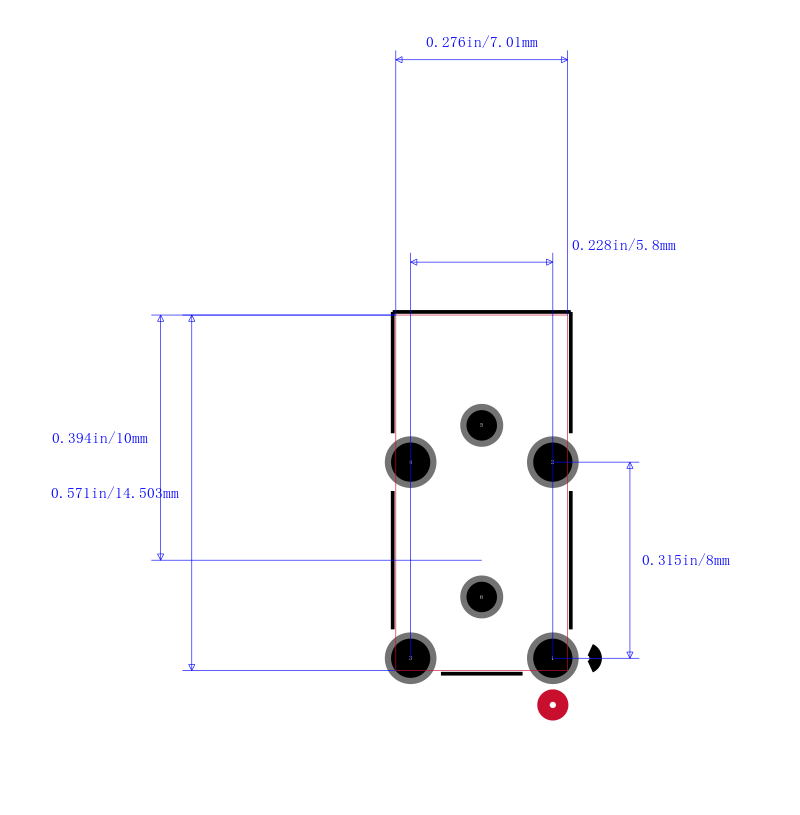

The 3.5mm stereo jack audio and video connector from allows you to operate video and sound in your design. This F connector"s 3 contacts that are made out of copper alloy and plated with tin. It has a female type gender. It has a right angle body orientation. This connector has a single port. It has a maximum voltage rating of 34 VDC|34VAC. This device has a maximum current rating of 1 A. 1503 08 is housed in polybutylene terephthalate. This product comes packaged in bulk, so the parts will be stored loosely. This product is 7 mm long, 6.1 mm tall and 14.5 mm deep. Its 3 terminals use the solder termination method. This part has an operating temperature range of -20 °C to 70 °C.
