1933228

Phoenix Contact COMBICON 紧凑型 PST 5.0mm 端子块引脚管座2 件式 5.0mm 节距螺钉接线端子块，可水平或垂直装入印刷电路板 额定电流/电压为 12A/250V，适用于 0.2 到 2.5mm² 截面积（26-14awg）的实心和柔性导线 易燃性等级 UL94V-0 有 2 路、3 路和 4 路几种类型 16 路插针条，可连接所需路数 ### Phoenix Contact COMBICON 5.0mm 两件式端子块

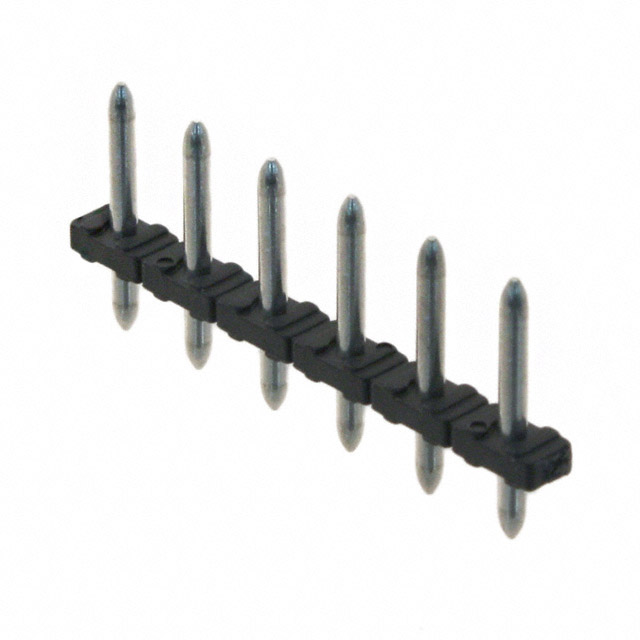

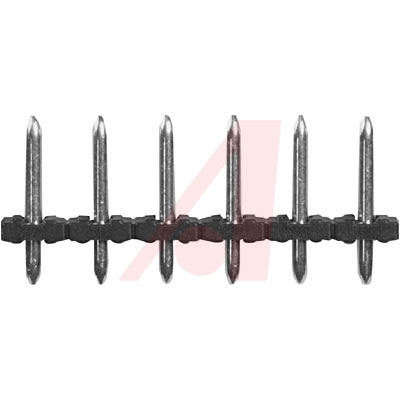

6 针位端子块 接头，公引脚，无罩 0.197"（5.00mm） 垂直 通孔

得捷:
TERM BLOCK HDR 6POS VERT 5MM

欧时:
Phoenix Contact COMBICON 紧凑型 PST 5.0mm 端子块引脚管座2 件式 5.0mm 节距螺钉接线端子块，可水平或垂直装入印刷电路板 额定电流/电压为 12A/250V，适用于 0.2 到 2.5mm² 截面积（26-14awg）的实心和柔性导线 易燃性等级 UL94V-0 有 2 路、3 路和 4 路几种类型 16 路插针条，可连接所需路数 ### Phoenix Contact COMBICON 5.0mm 两件式端子块

艾睿:
Thanks to Phoenix Contact&s;s unshrouded 1933228 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector has 6 contacts that are plated with tin. It has a straight body orientation. It has a header type gender. Its pitch is 5 mm. It has a maximum voltage rating of 320 V. This is a 1-row connector. This device has a maximum current rating of 12 A. It uses the solder termination method. This product is 30 mm long, 9.5 mm tall and 2.8 mm deep. 1933228 is housed in black polyamide.

Allied Electronics:
Conn; Term Blk; Header; 6; 5 mm; Black; 10 A Plug dependent; 400 V; Solder

Verical:
Conn Unshrouded Header HDR 6 POS 5mm Solder ST Thru-Hole

MASTER:
Pin strip - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - number of positions: 6 - pitch: 5 mm - color: black - contact surface: Tin - mounting: THR soldering - pin layout: Linear pinning - solder pin [P]: 3.5 mm

Online Components:
Conn Unshrouded Header HDR 6 POS 5mm Solder ST Thru-Hole

Electro Sonic:
Pin strip - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - ...
