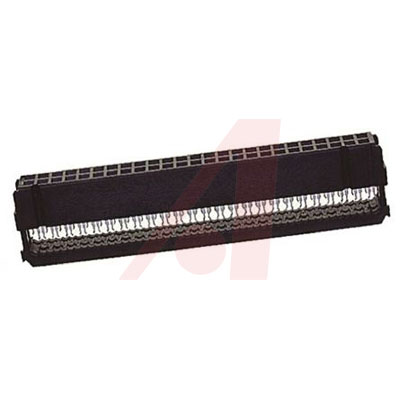

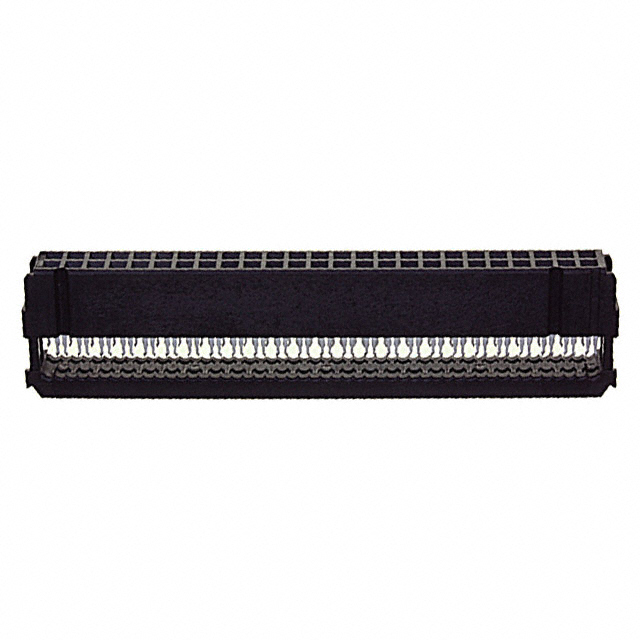

1-1658623-0

AMP FROM TE CONNECTIVITY  1-1658623-0  输入/输出连接器

* .100 x .100 [2.54 x 2.54] mating grid for .050 [1.27] pitch ribbon cable * Tuning fork contact offers a military approved design, at an economical cost * Polarization options include military, center and military, and dual bar * Choice of duplex gold plating on contact mating area * Insulation displacement contacts for fast, economical mass terminations * Contact design provides uniform latching of contacts and housing with connector cover * Housing, cover and strain relief made of UL 94V-0 rated thermoplastic material * Selected 10 thru 64-position configurations available * Accepts wire size range 28-26 AWG [0.08-0.15 mm2], solid or stranded * Snap-on strain relief and choice of pull loops available * One-step termination with Novo tooling
