1776537

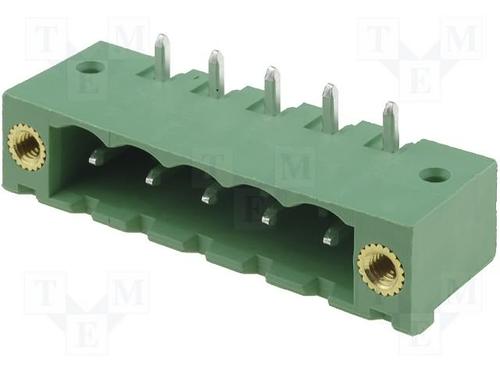

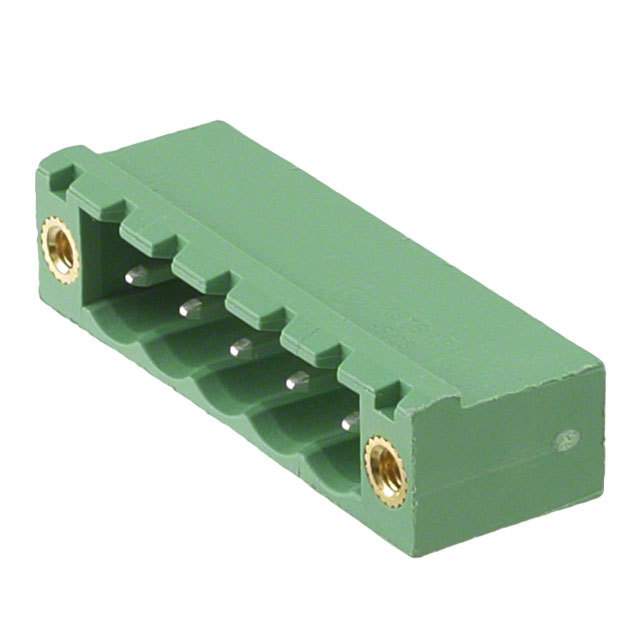

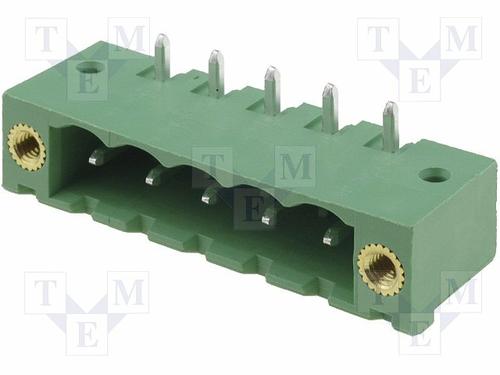

Phoenix Contact PCB 接线端子块 COMBICON MSTB 系列 5路 5.08mm节距 1776537, 焊接端接, 12A

5 针位端子块 接头，公引脚，带罩（4 面） 0.200"（5.08mm） 90°，直角 - 通孔

立创商城:
板端/插座-闭口 5.08mm 排数:1 每排P数:5 弯针 螺丝固定

得捷:
TERM BLOCK HDR 5POS 90DEG 5.08MM

贸泽:
可插拔接线端子 5 Pos 5.08mm pitch Through Hole Header

艾睿:
Think of Phoenix Contact&s;s shrouded 1776537 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector has 5 contacts that are plated with tin. It has a maximum voltage rating of 320 V. It has a header type gender. Its pitch is 5.08 mm. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 12 A. This product is 35.56 mm long, 8.6 mm tall and 12 mm deep. 1776537 is housed in green polybutylene terephthalate. It uses the solder termination method.

Verical:
Conn Shrouded Header 4 Sides HDR 5 POS 5.08mm Solder RA Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 5 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3

Online Components:
Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
